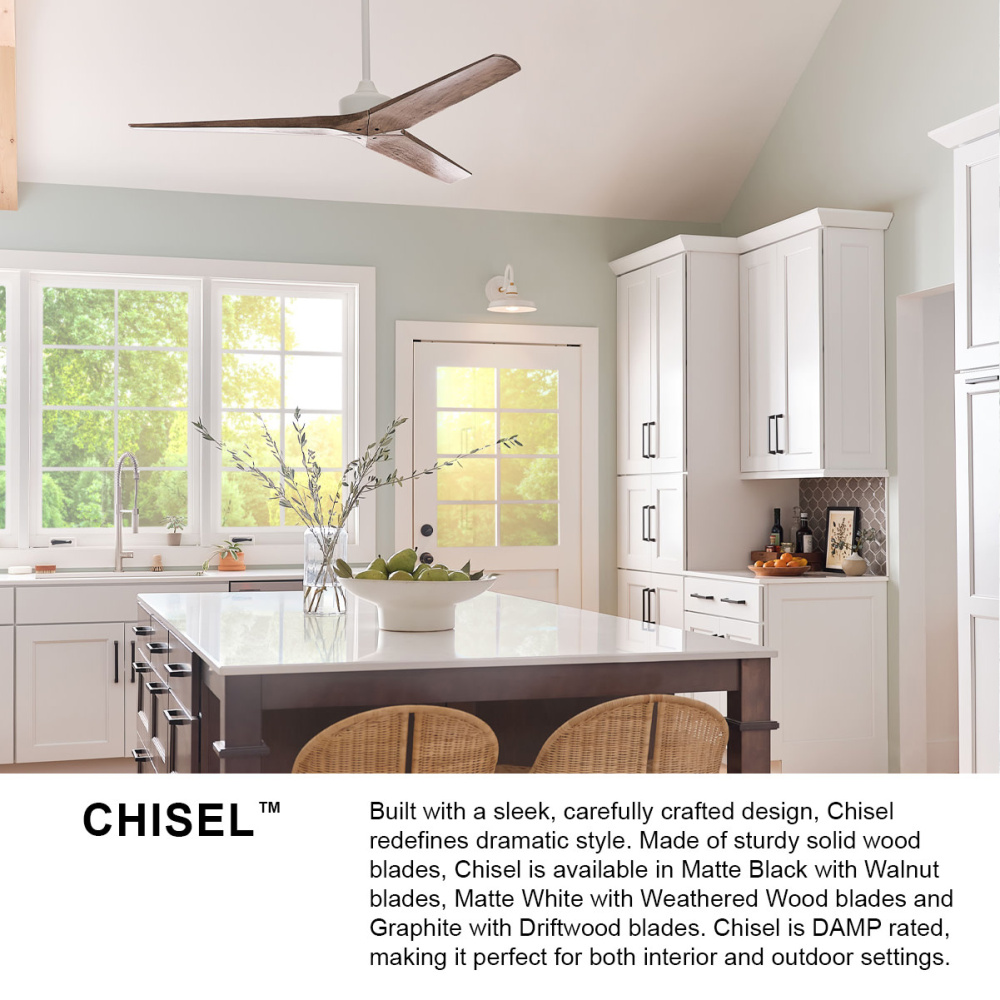

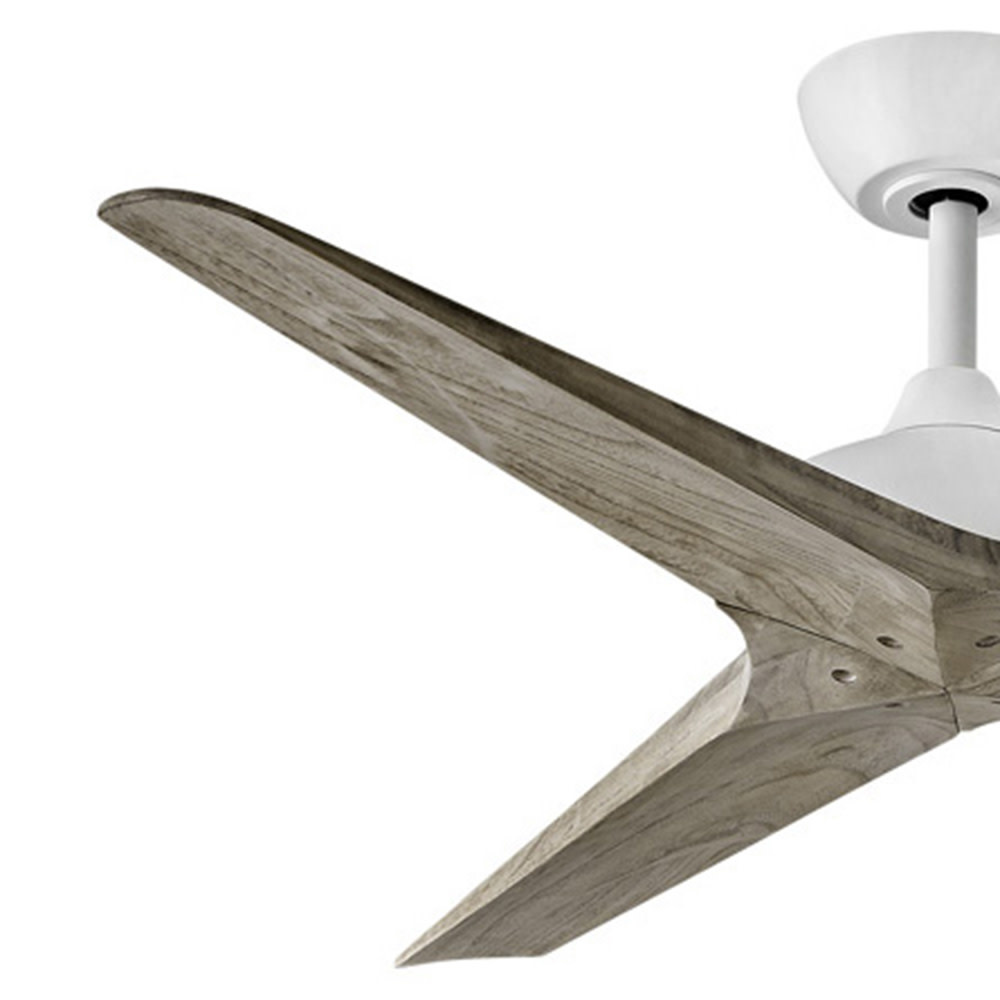

Built with a sleek, carefully crafted design, Chisel redefines dramatic style. Sturdy solid wood blades are available in a variety of sophisticated finishes to complement modern interiors and outdoor settings. Damp rated. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.
Standard Information
Category:
Fans
Subcategory:
Ceiling Fans
Finish:
White
Style:
Modern
Option:
Title 24
Damp Rated
Prop 65
Voltage:
100-120
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Refinement Options
Category:
Fan
Finish:
Matte White
Style:
Modern
Family:
Chisel
Voltage:
120 V
Air Flow Efficiency:
6292
Amperage:
0.53
Blade Finish:
Weathered Wood
Blade Pitch:
13
Blade Span:
52
Blades Included:
Yes
Canopy:
6 Dia. x 2.5 D
Introduction Date:
01/01/2021
Light Kit Included:
No
Material:
Steel
Motor Size:
165 x 21
Motor Type:
DC
Ship Carton Height:
10.1
Ship Carton Length:
33.4
Ship Carton Width:
16
Ship Weight:
25.3
Vendor Ship Method:
Parcel
Weight:
23.1
Airflow Avg:
4004
AMPS Avg:
0.29
Avg Energy Use:
25
Blade Material:
Wood
Blade Options Available:
No
Blade To Ceiling Height:
12
Blades Reversible:
No
Bulb Included:
No
Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
Taiwan
Dual Mount:
No
Efficiency Avg:
160
Efficiency High:
166
Energy Cost Avg:
7
Energy Cost High:
10.65
Energy Use High:
38
Fan Control:
Yes
Flush Mount Fan:
No
Light Kit Adaptable:
No
Location Rating:
Damp Rated
Motor Fan Speed:
6
Number of Blades:
3
Operating Frequency:
60
Prop 65 Description:
View
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
130
RPMS High:
210
Safety Rating:
ETL Approved, C-US Approved
Single Power Switch:
Yes
Slope:
20
Sloped Ceiling Adaptable:
Yes
Stand By Power:
0.2
Title 24:
No
WIFI Control Included:
Yes
WIFI Control Optional:
No
Blades, controls, switches, capacitors and hardware carry a 1-year warranty
Bold silhouette with dramatic details creates a modern statement

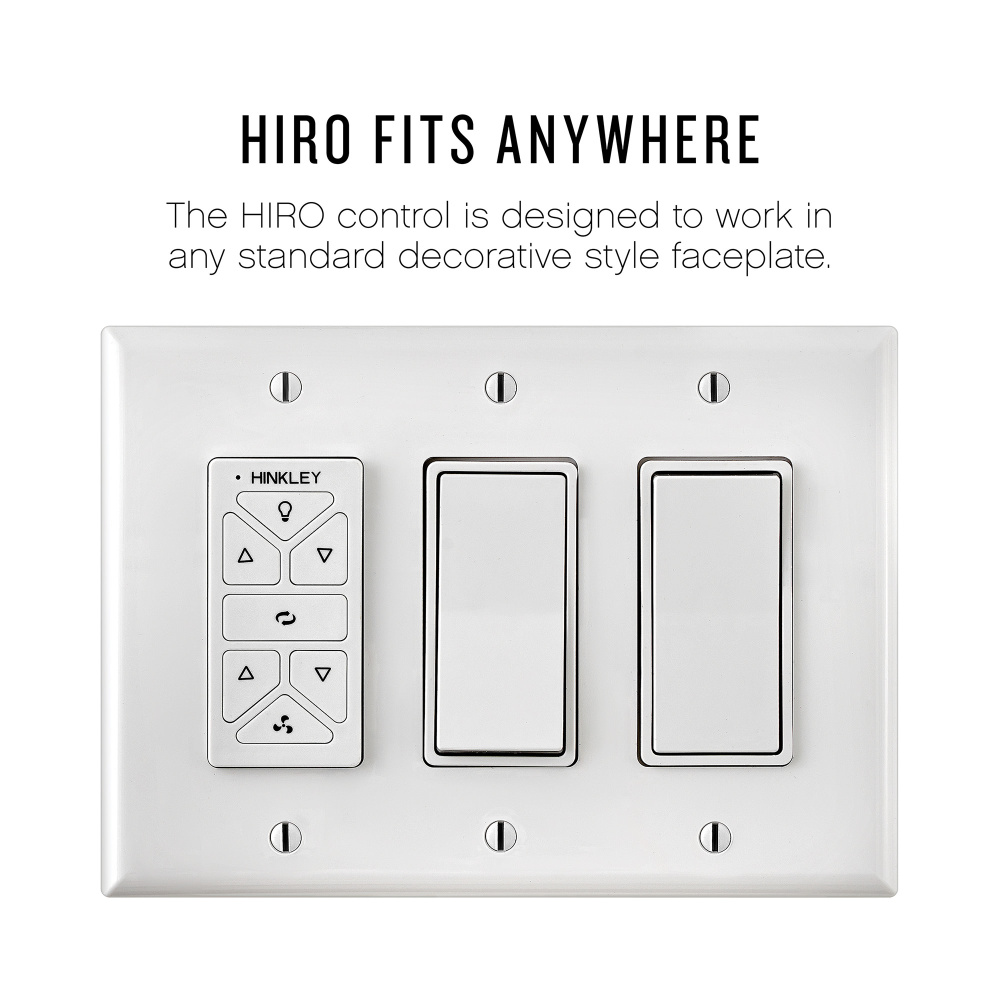

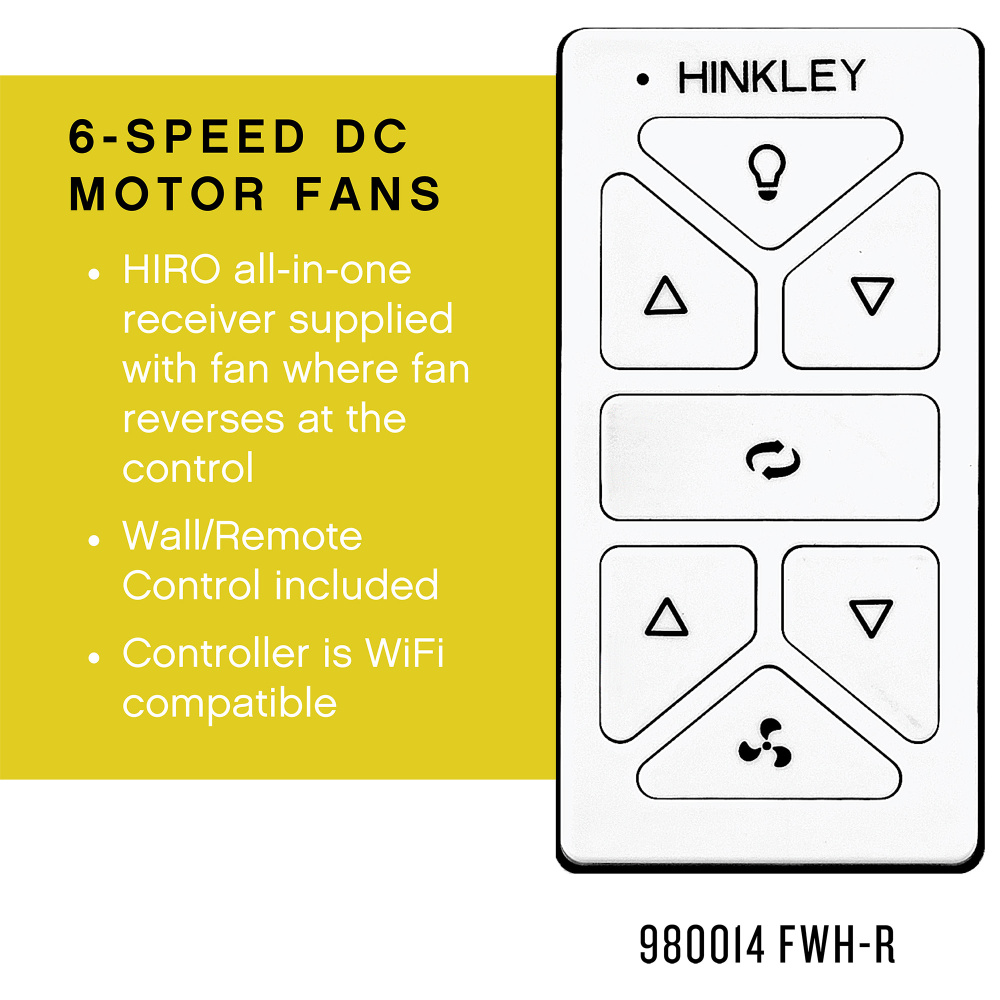

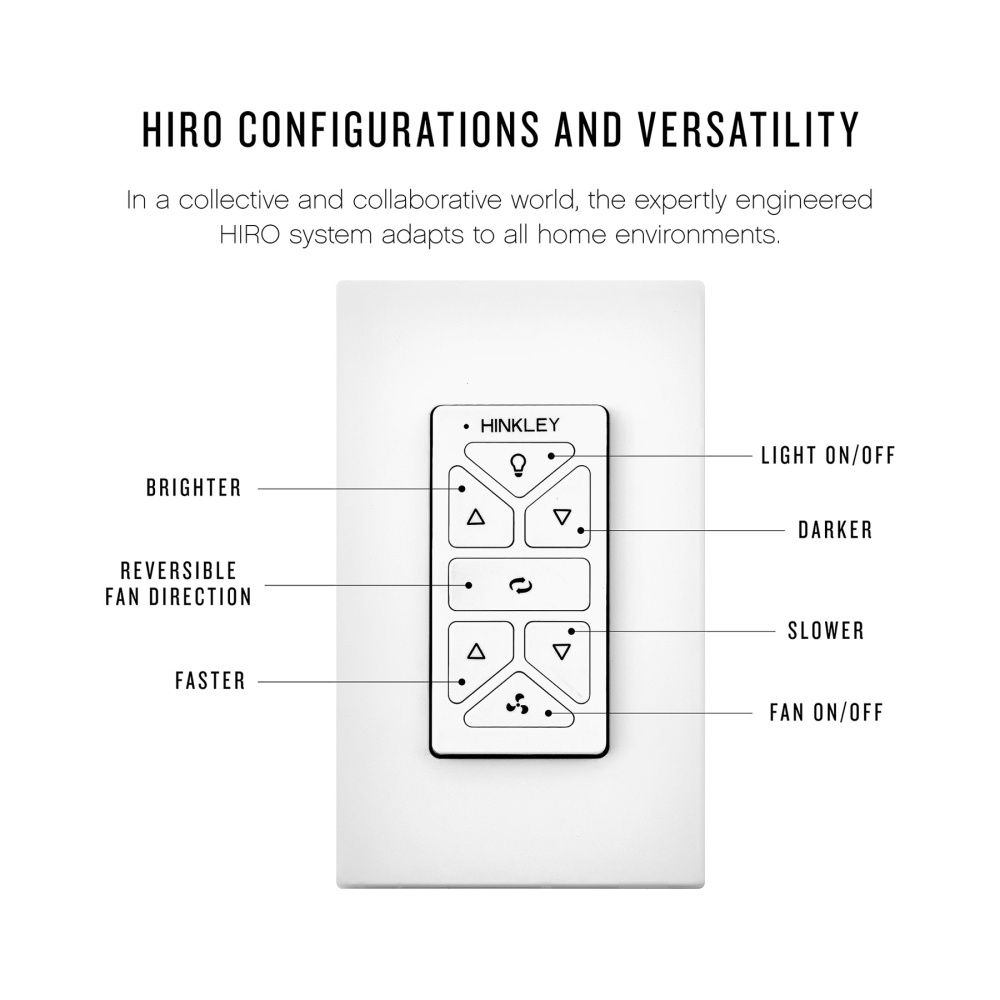

Fan Control included, HIRO Control - 6 Speed Reversing
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
Motor carries a lifetime warranty
Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.

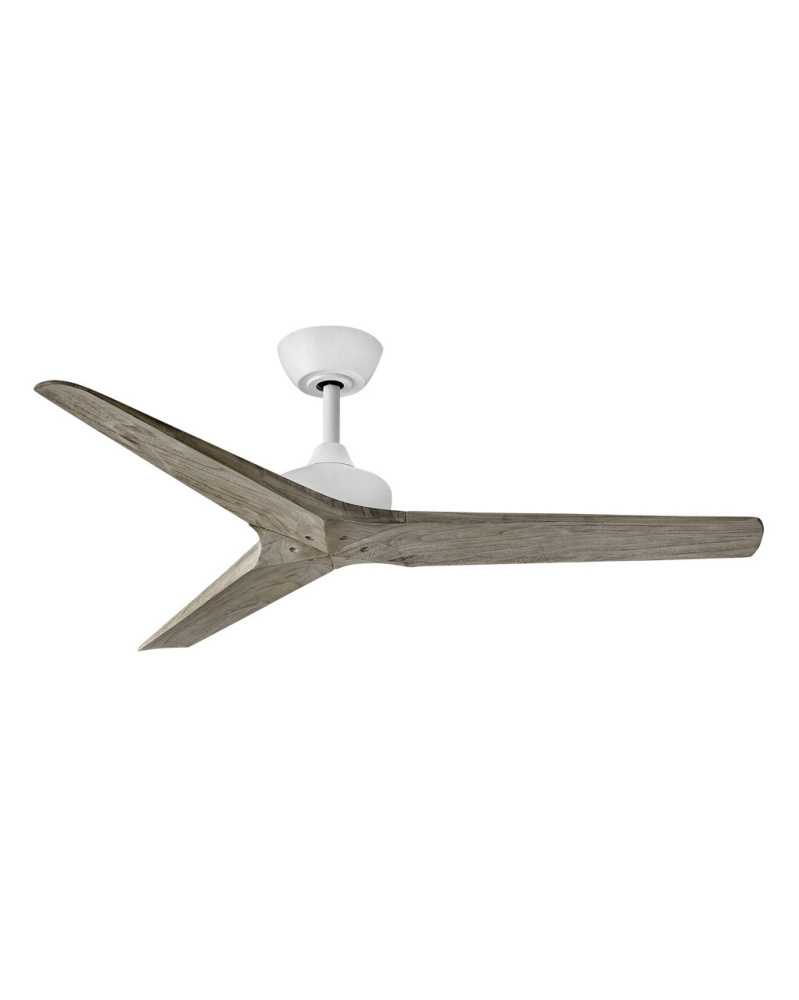

![Chisel 52" Smart Fan](/vendors/329/large/903752fmw-ndd_fww-b_1_01.jpg "Chisel 52" Smart Fan")
