Atom 30" LED Fan (9X40G)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
332
22
/
/ 1
($332.22 / 1)
WAS
$
Call for Price
+
-
Add To Quote
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
9X40G

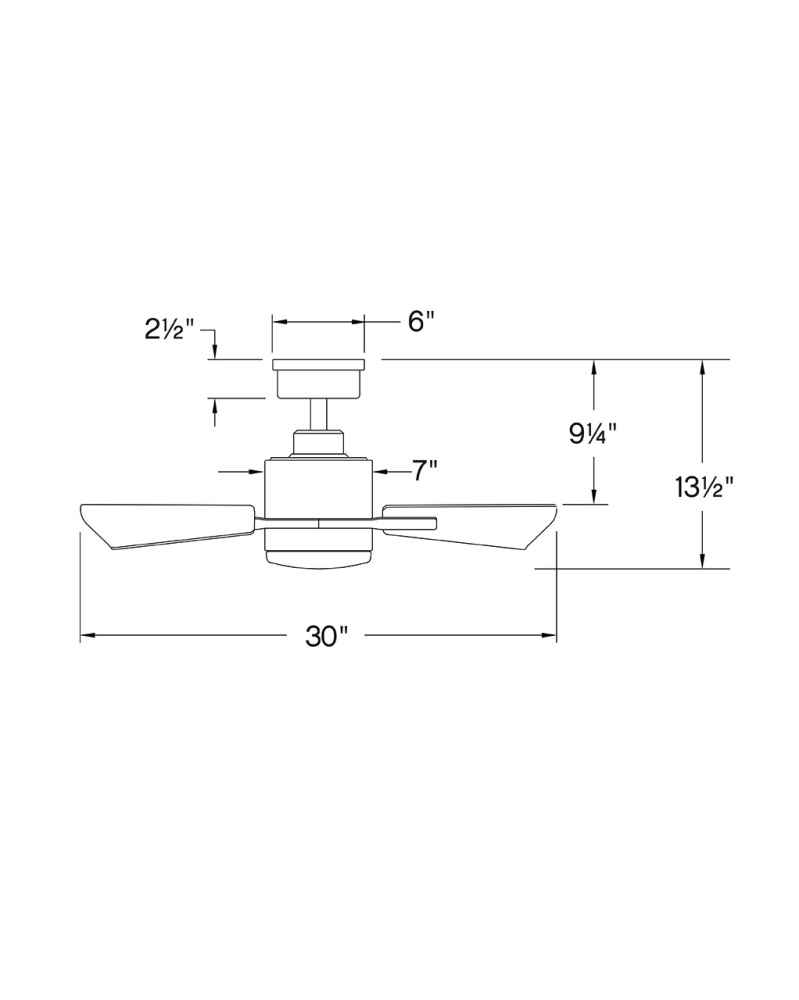

Dimensions:
Height: 13.25"
Width: 30.00"
Length: 30.00"
Changes Other Selections...
Availability:
- Manufacturer has 184 items available.
- More Items available 03/17/2025.
Description
Details
Downloads

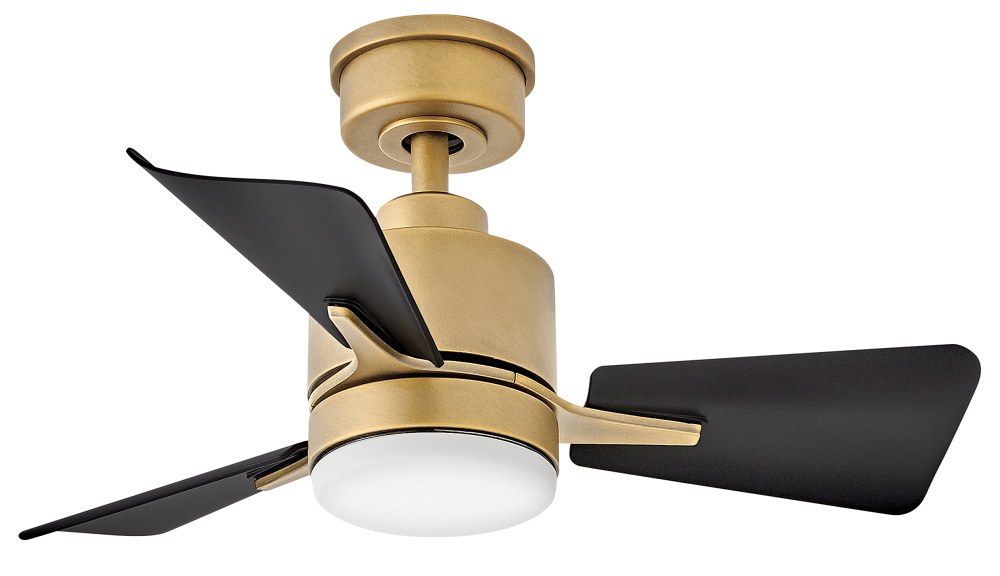

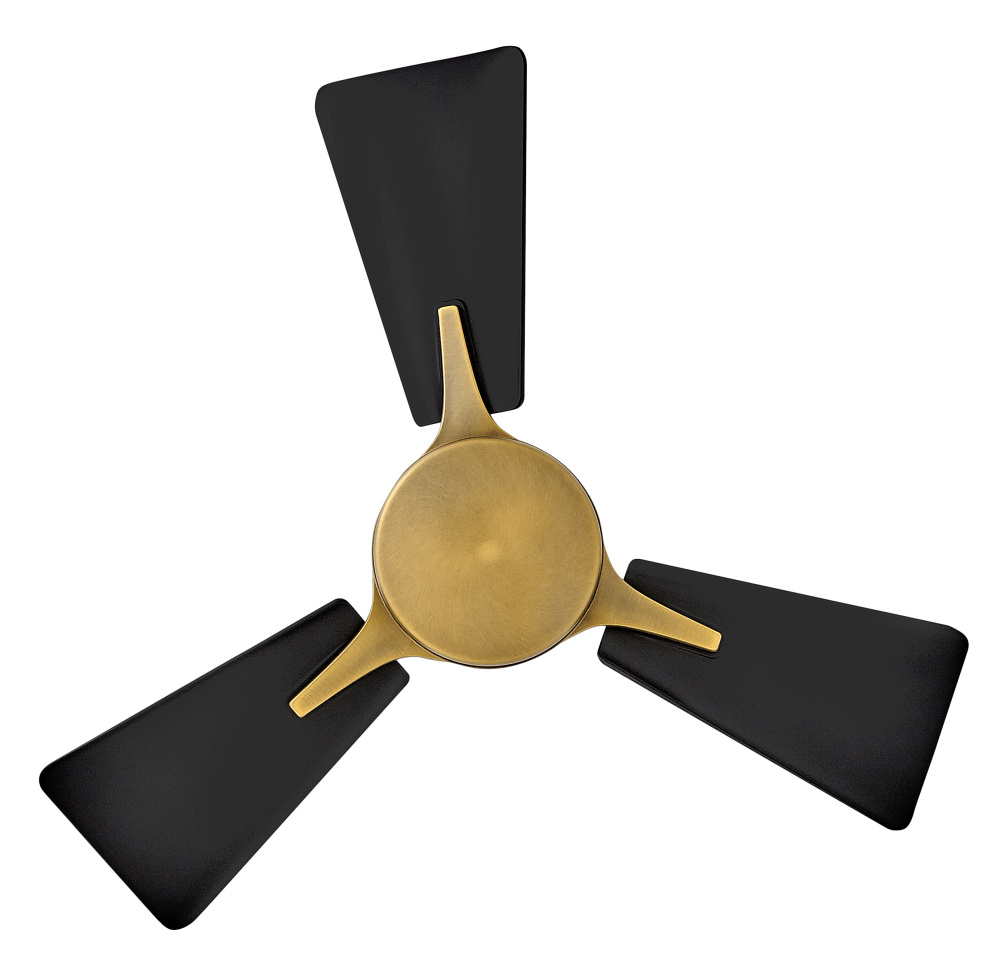

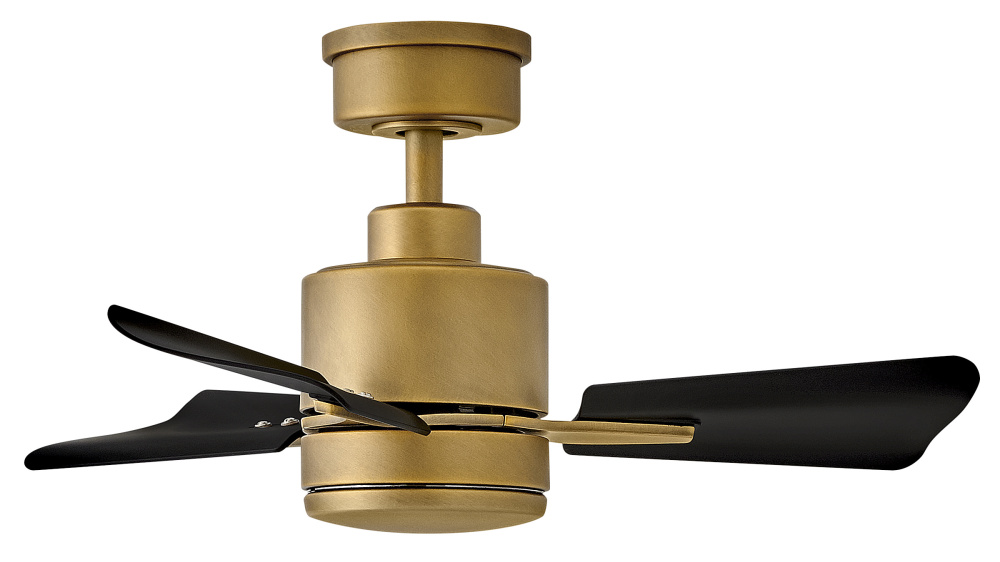

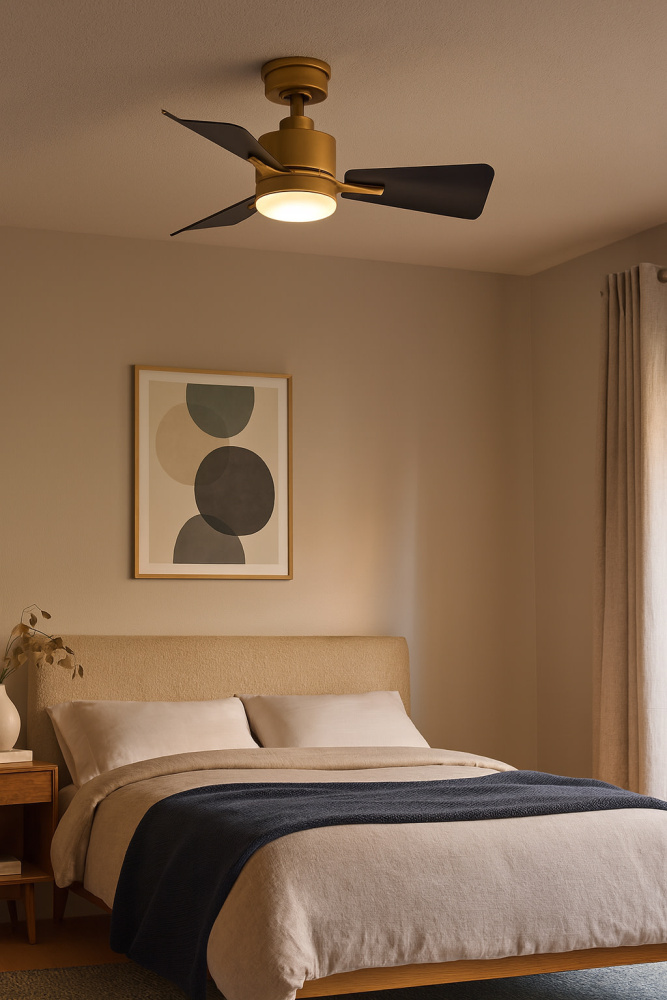

Part of the Regency Series, Atom's compact modern profile complements functionality with classic finishes to perfectly accentuate smaller spaces. Its damp-rated design is suitable for both interior and covered outdoor areas. Dimmable Integrated LEDs emit warm, even light, creating a comfortable atmosphere. Operated by the HIRO control, the 3-speed AC motor can be WiFi enabled with the purchase of an additional control accessory. Atom mounts directly to its canopy or with the included downrod for dual mount capability. This will result in an overall fan height of 10" and a ceiling-to-blade height of 5 3/4�.
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Brass
Style:
Traditional
Option:
Title 24
, Damp Rated
Category:
Fan
Finish:
Heritage Brass
Style:
Traditional
Family:
Atom
Glass:
Etched Opal
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
2845
Amperage:
0.46
Blade Finish:
Matte Black
Blade Pitch:
13
Blade Span:
30
Blades Included:
Yes
Bulb Dimmable:
Yes - CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED

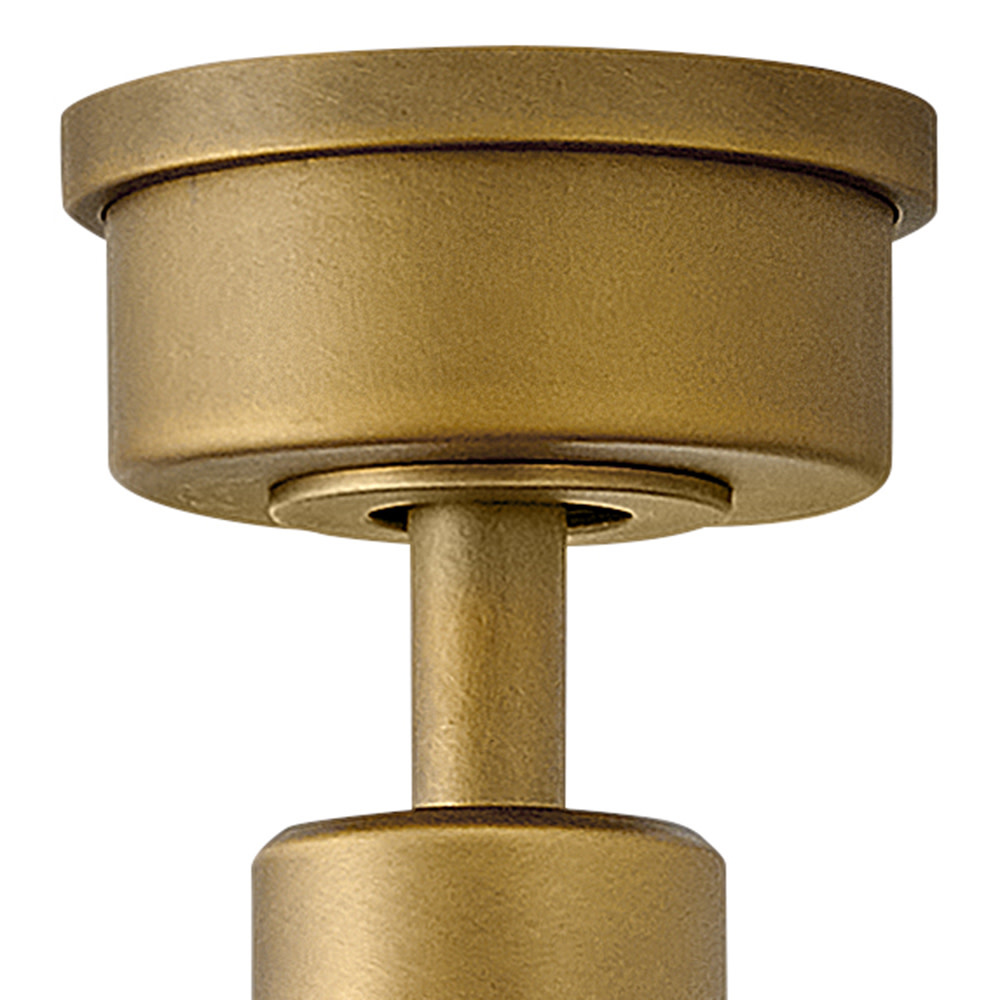

Canopy:
6 Dia. x 2.25 D
Introduction Date:
01/01/2024
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Size:
153 x 12
Motor Type:
AC
Ship Carton Height:
9.53
Ship Carton Length:
17.44
Ship Carton Width:
16.38
Ship Weight:
15.26
Vendor Ship Method:
Parcel
Weight:
13.23
Airflow Avg:
2114
AMPS Avg:
0.34
Avg Energy Use:
36
Blade Material:
Composite
Blade Options Available:
No
Blade To Ceiling Height:
10
Blades Reversible:
No
Bulb CRI:
90
Bulb Included:
Yes
Control Type:
HIRO Control - 3 Speed Manual Reversing
Country of Origin:
China
DM Airflow Avg:
1690
DM Airflow High:
2314
DM AMPS Avg:
0.32
DM AMPS High:
0.43
DM Avg Energy Use:
30
DM Efficiency Avg:
56
DM Efficiency High:
49.2
DM Energy Cost Avg:
9
DM Energy Cost High:
13.18
DM Energy Use High:
47
DM RPMS Avg:
100
DM RPMS High:
223
Dual Mount:
Yes
Efficiency Avg:
59
Efficiency High:
52
Energy Cost Avg:
10
Energy Cost High:
15.36
Energy Use High:
54.8
Fan Control:
Yes
Flush Mount Fan:
No
Incandescent Equivalency:
100 W
Light Kit Adaptable:
No
Light Source:
Integrated LED
Location Rating:
Damp Rated
Max Wattage:
16 W
Motor Fan Speed:
3
Number of Blades:
3
Operating Frequency:
60
Prop 65 Description:
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
174
RPMS High:
234
Safety Rating:
UL Approved, C-US Approved
Single Power Switch:
No
Slope:
20
Sloped Ceiling Adaptable:
Yes
Stand By Power:
0.29
Title 24:
Yes
WIFI Control Included:
Yes
WIFI Control Optional:
No
Additional Information:
- Blades, controls, switches, capacitors and hardware carry a 1-year warranty
- Classic, elegant lines and timeless details enhance a traditional space
- Fan Control included, HIRO Control - 3 Speed Reversing

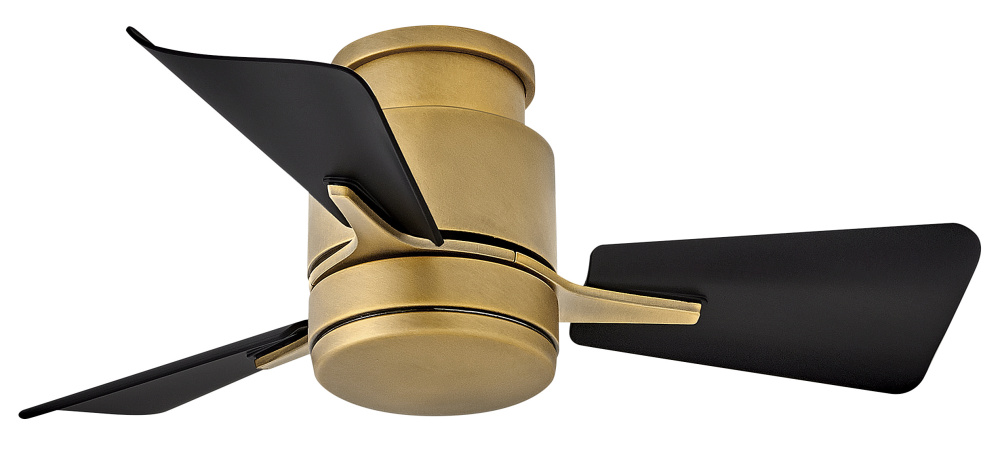

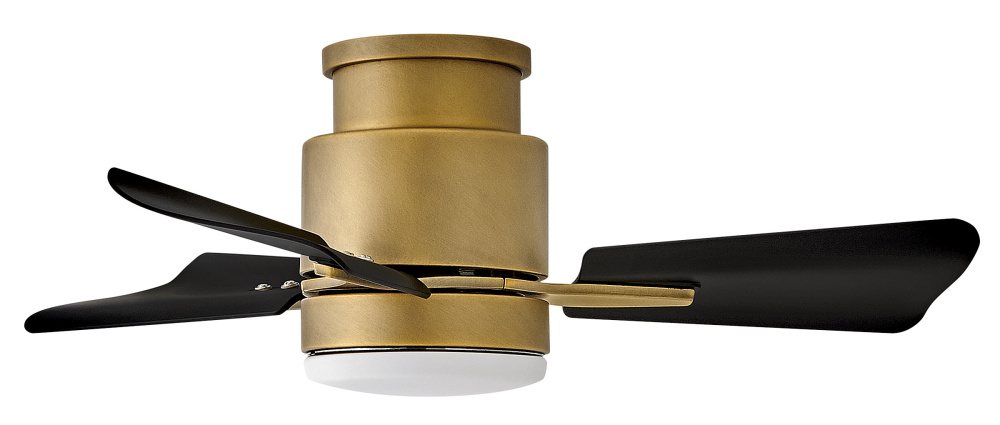

- Fan mounts directly to canopy or with an included downrod for dual mount capability
- Fans should be installed at a minimum of 7 feet from the floor
- For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
- LED components carry a 5-year limited warranty
- Motor carries a lifetime warranty
- Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
- The Regency Series features a range of traditional ceiling fans designed to enhance a wide variety of spaces with ease.
- This item includes a 4.5" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
- This item includes a light kit cover
- This item may be hung on a sloped ceiling
- WiFi compatible with included fan control
