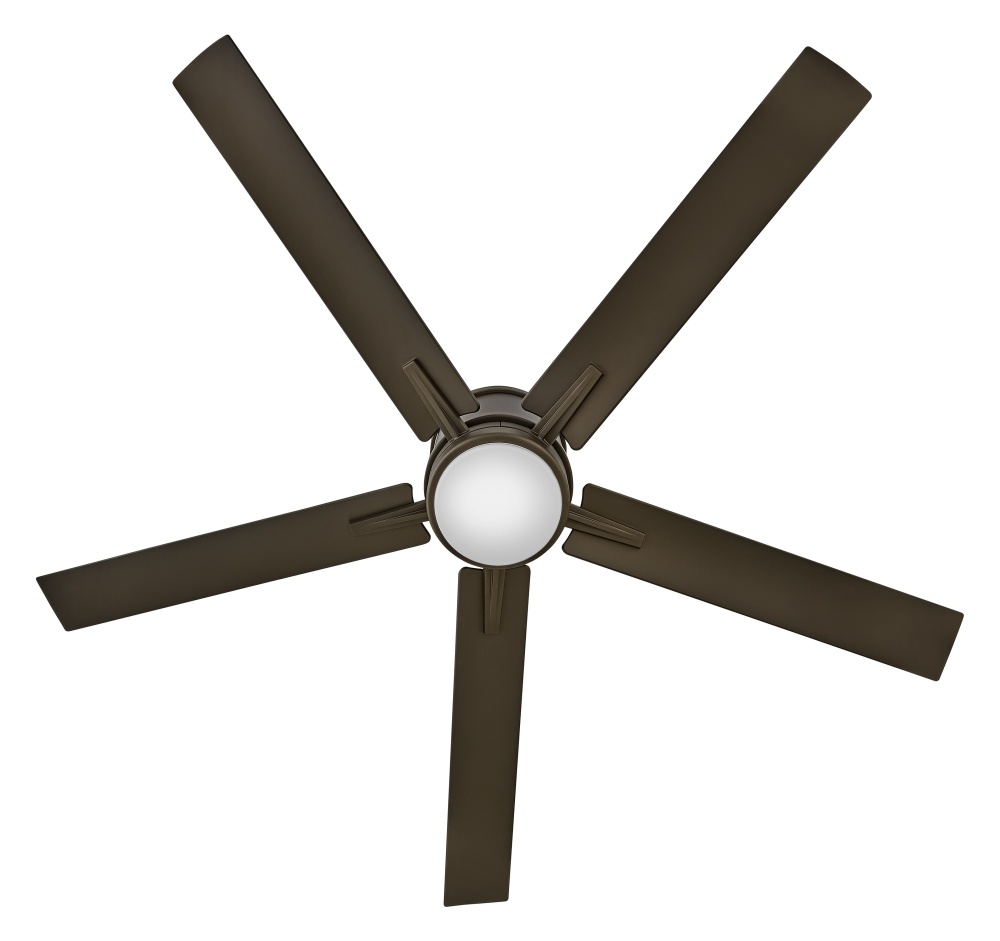

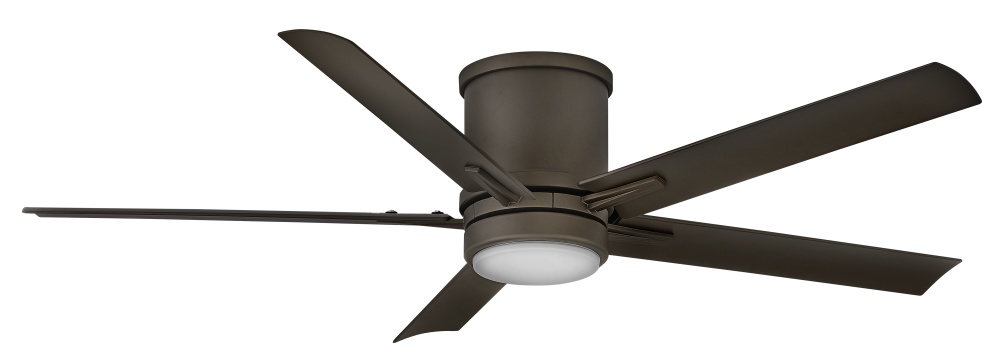

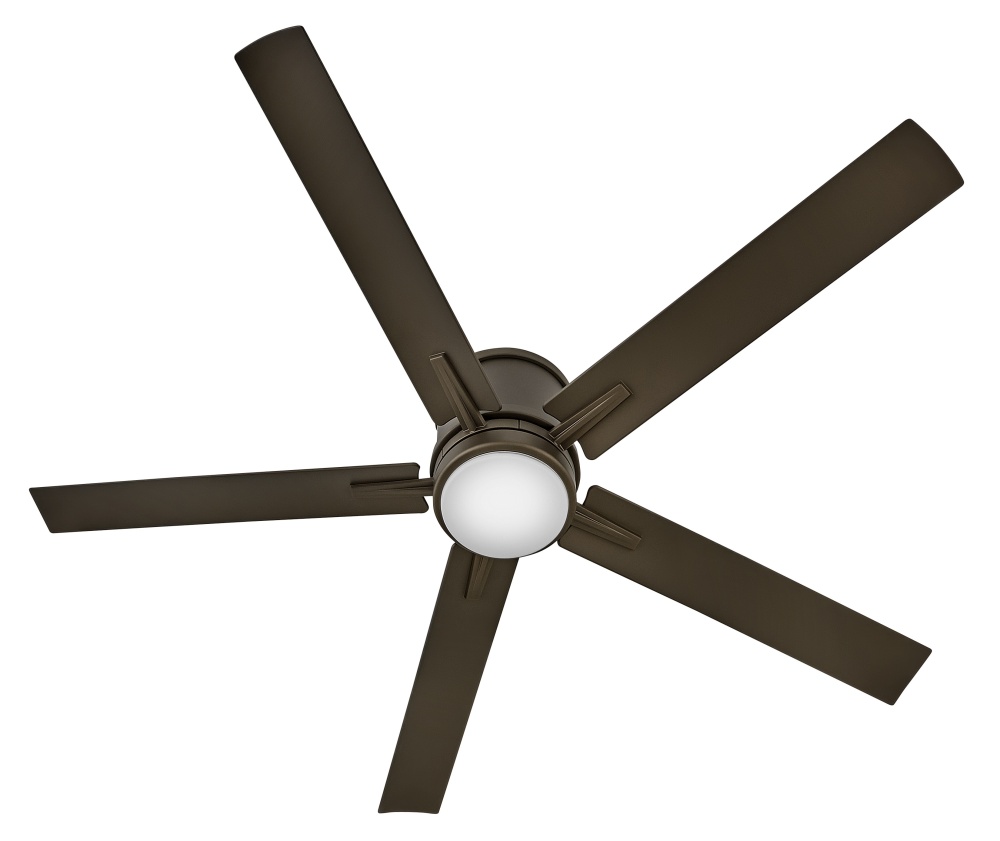

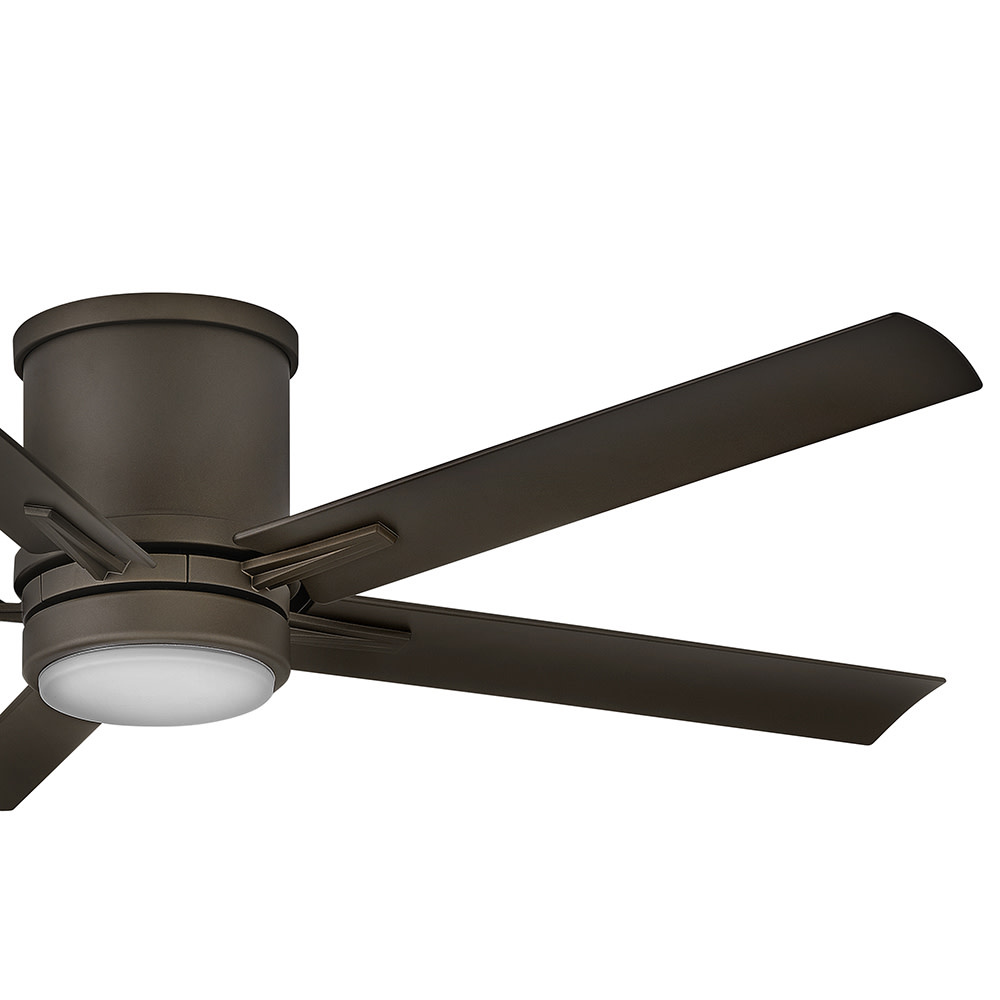

Vail Flush offers a transitional design with gently curved blades and an array of finish options, while its integrated LED lighting and DC motor technology deliver excellent energy efficiency. Vail Flush is so versatile; it can be used for both indoor and outdoor spaces. Blades are included with every fan.
Standard Information
Category:
Exterior
Fans
Subcategory:
Exterior Fans
Outdoor Fans
Finish:
Bronze
Style:
Transitional
Option:
Title 24
Wet Rated
LED
Prop 65
Voltage:
100-120
Lumens:
1101-1600
Number of Blades:
5 Blades
Kelvin:
2501-3000
Location Rating:
Wet Rated
Refinement Options
Category:
Fan
Finish:
Metallic Matte Bronze
Style:
Transitional
Family:
Vail Flush
Glass:
Etched Opal
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
6280
Amperage:
0.48
Blade Finish:
Metallic Matte Bronze
Blade Pitch:
14

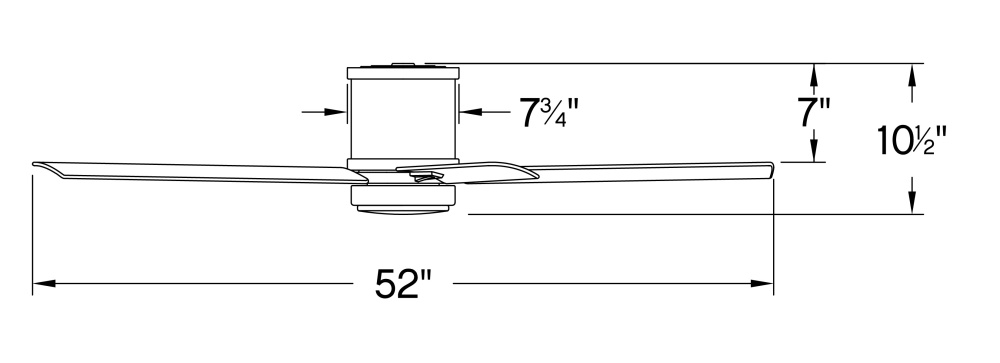

Blade Span:
52
Blades Included:
Yes
Bulb Dimmable:
Yes - CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED
Canopy:
7.75 Dia.
Introduction Date:
01/01/2022
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Size:
DC-125NS
Motor Type:
DC
Ship Carton Height:
12
Ship Carton Length:
10.5
Ship Carton Width:
29.25
Ship Weight:
16.75
Vendor Ship Method:
Parcel
Weight:
14.25
Airflow Avg:
4044
AMPS Avg:
0.27
Avg Energy Use:
26
Blade Material:
Composite
Blade Options Available:
No
Blade To Ceiling Height:
7.5
Blades Reversible:
No
Bulb CRI:
90
Bulb Included:
Yes
Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
China
Dual Mount:
No
Efficiency Avg:
156
Efficiency High:
172
Energy Cost Avg:
7
Energy Cost High:
10.23
Energy Use High:
36.5
Fan Control:
Yes
Flush Mount Fan:
Yes
Incandescent Equivalency:
100 W
Light Kit Adaptable:
No
Light Source:
Integrated LED
Location Rating:
Wet Rated
Max Wattage:
16 W
Motor Fan Speed:
6
Number of Blades:
5
Operating Frequency:
60
Prop 65 Description:
View
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
103
RPMS High:
162
Safety Rating:
UL Approved, C-US Approved
Single Power Switch:
Yes
Sloped Ceiling Adaptable:
No
Stand By Power:
0.2
Title 24:
No
WIFI Control Included:
Yes
WIFI Control Optional:
No
Blades, controls, switches, capacitors and hardware carry a 1-year warranty

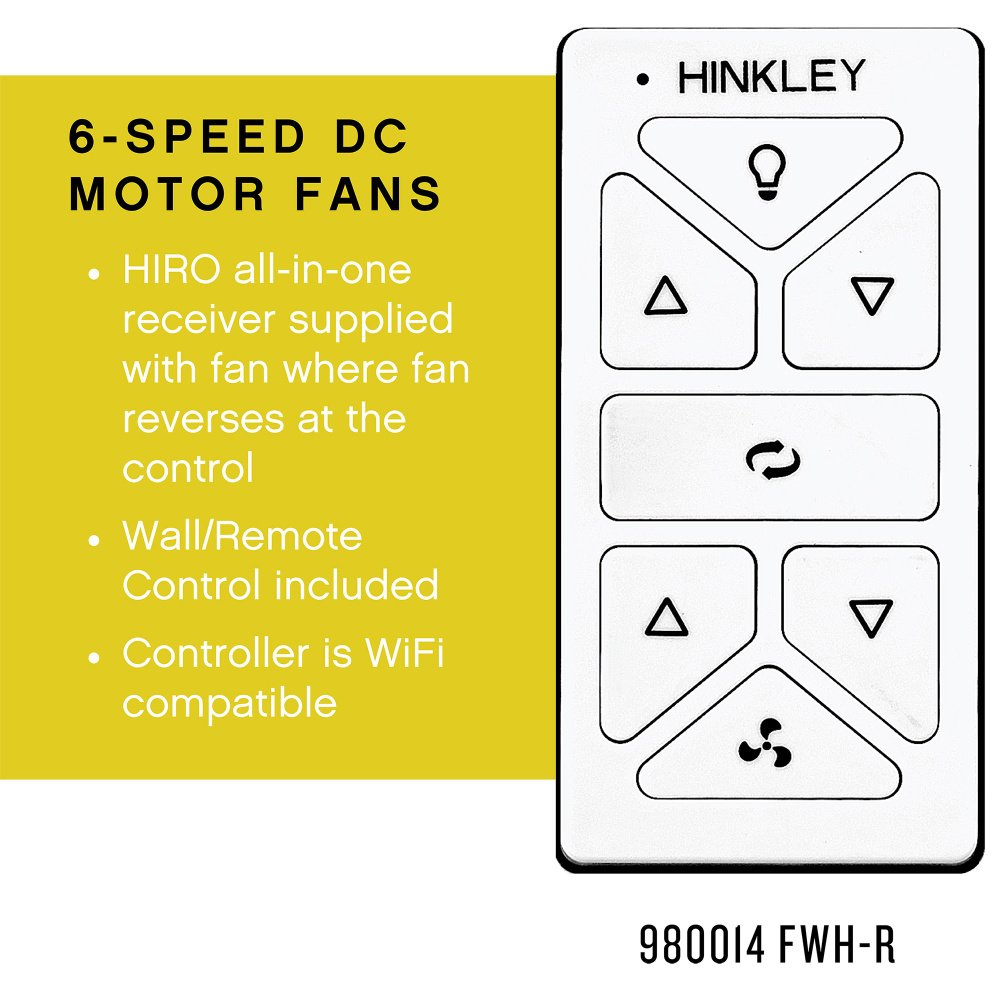

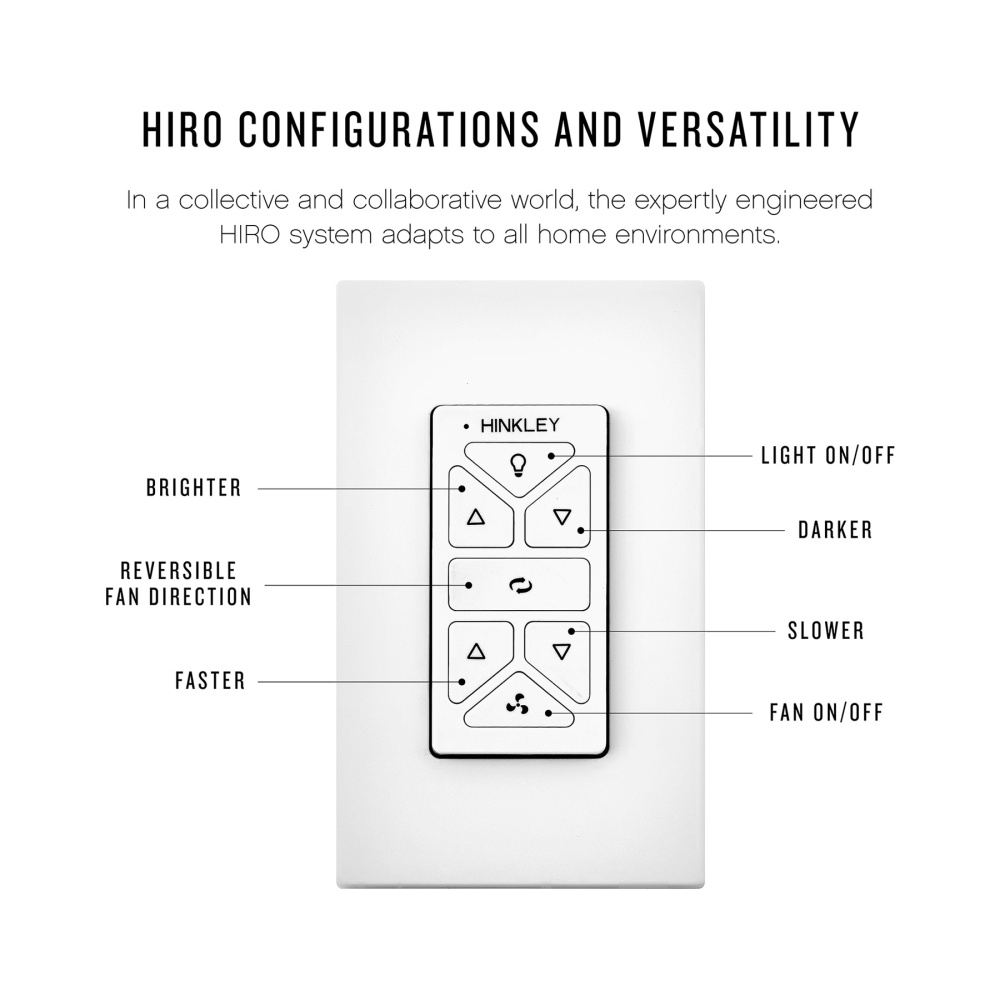

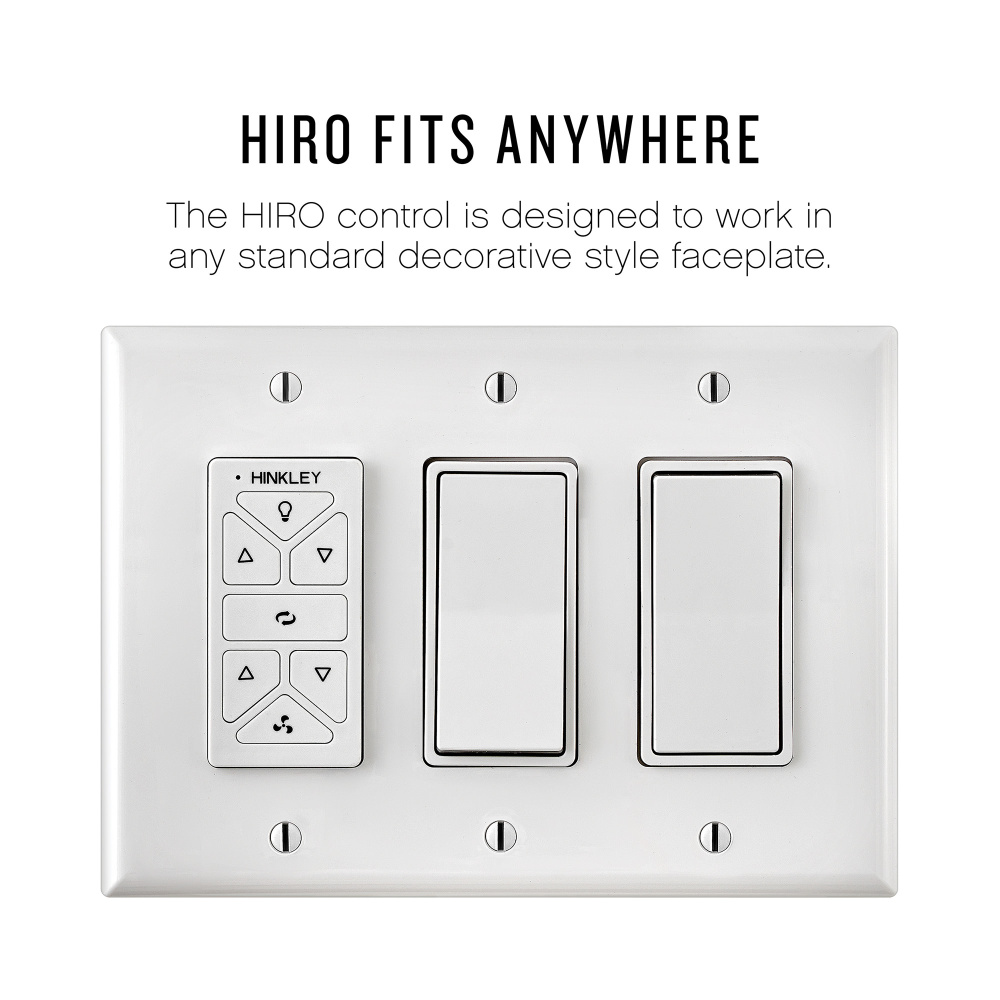

Fan Control included, HIRO Control - 6 Speed Reversing
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
LED components carry a 5-year limited warranty
Merging the best of traditional and modern elements with a sophisticated and streamlined look
Motor carries a lifetime warranty
Powered by a highly efficient and quiet DC motor
Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
