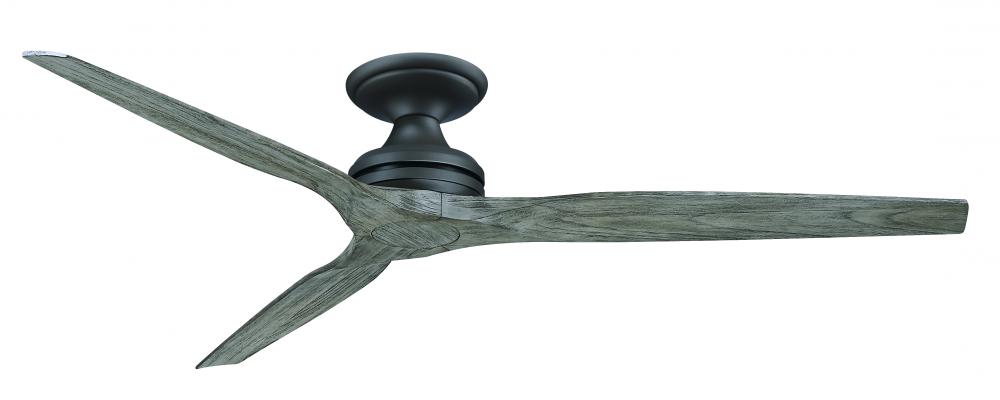

The Spitfire DC Custom features an exquisite three bladed design with many rich finish offerings to choose from. The Spitfire DC Custom is available in a 64, 72, 84 and 96 inch blade sweep (sold separately), and an optional LED light kit that features the correlated color temperature (CCT) Select functionality (sold separately). Handheld remote included. This ceiling fan is Damp rated for indoor or outdoor use and can be controlled using the Fanimation Wi-Fi fanSync application.
Standard Information
Category:
Fans
Subcategory:
Ceiling Fans
Finish:
Miscellaneous
Style:
Traditional
Option:
Energy Efficient
Outdoor
Damp Rated
Voltage:
100-120
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Wattage:
8w
Refinement Options
Category:
Motor
Finish:
Matte Greige
Option:
Energy Efficient
Outdoor
Family:
Spitfire
Voltage:
120 V
Air Flow CFM:
12900
Air Flow Efficiency:
386
Blade Pitch:
14
Canopy:
8.76 Dia x 2.52 H
Harmonized Codes:
8414.51.3000
Light Kit Included:
No
Motor Size:
153 x 25
Motor Type:
DC
Ship Carton Height:
10.94
Ship Carton Length:
14.37
Ship Carton Width:
10.43
Ship Weight:
16.65
Sold By:
EA
Warranty:
1 Year
Weight:
15.99
Airflow Efficiency Low:
1049
Airflow Efficiency Medium:
880
Avg Airflow Efficiency:
376
Avg CFM Energy:
7429
Avg Energy Use:
20
Avg Estimated Yearly Energy Cost:
6
Avg Estimated Yearly Energy Cost on HIGH:
9
Cap Included:
No
Carton Cubic Feet:
0.95
Case Height:
10.94
Case Length:
14.37
Case Quantity:
1
Case Weight Pounds:
18.19
Case Width:
10.43
CEC Uploaded:
Yes
Ceiling To Blade Edge:
19.69
Ceiling To Bottom (No Light Kit):
19.69
Ceiling To Bottom (With Light Kit):
21.35
CFM Low:
2958
CFM Medium:
7355
Country of Origin:
China
Current Draw High:
0.47
Current Draw Low:
0.06
Current Draw Medium:
0.14
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
12, 6
Energy Efficient:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
8.07
Included Control:
TR305
Included Control Type:
Handheld
Indoor:
Yes
Leadwire:
80
Location Rating:
Damp Rated
Max Ceiling Slope:
27
Max Length:
96
Max Width:
96
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
16
Outdoor:
Yes
Prop 65 Description:
View
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High:
112
RPM Low:
29
RPM Medium:
67
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 Hz
Watts High:
33
Watts Low:
3
Watts Medium:
8
CONTROL: Includes a Wi-Fi receiver and TR305 handheld remote with two 3V CR2032 batteries - Push buttons control 16 variable fan speeds
FINISH: Matte Greige ceiling fan motor from the Spitfire DC collection - Set of three Damp Rated blades available in multiple finishes (sold separately)
Infinite light levels, color temperature, fan/light timer, powering on/off, and fresh air, reverse, home away, safe exit modes
INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 12-in length downrod.
LIGHTING: 18-Watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology and opal frosted glass available for added versatility (light kit sold separately)
LOCATION: This ceiling fan is Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow.
POWER: The 16-speed, quiet and energy efficient DC motor can provide airflow up to 12,900 CFM
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices
