Sculpt 60" LED Smart Fan (9X333)

Image may not reflect selected features
No Image
Available

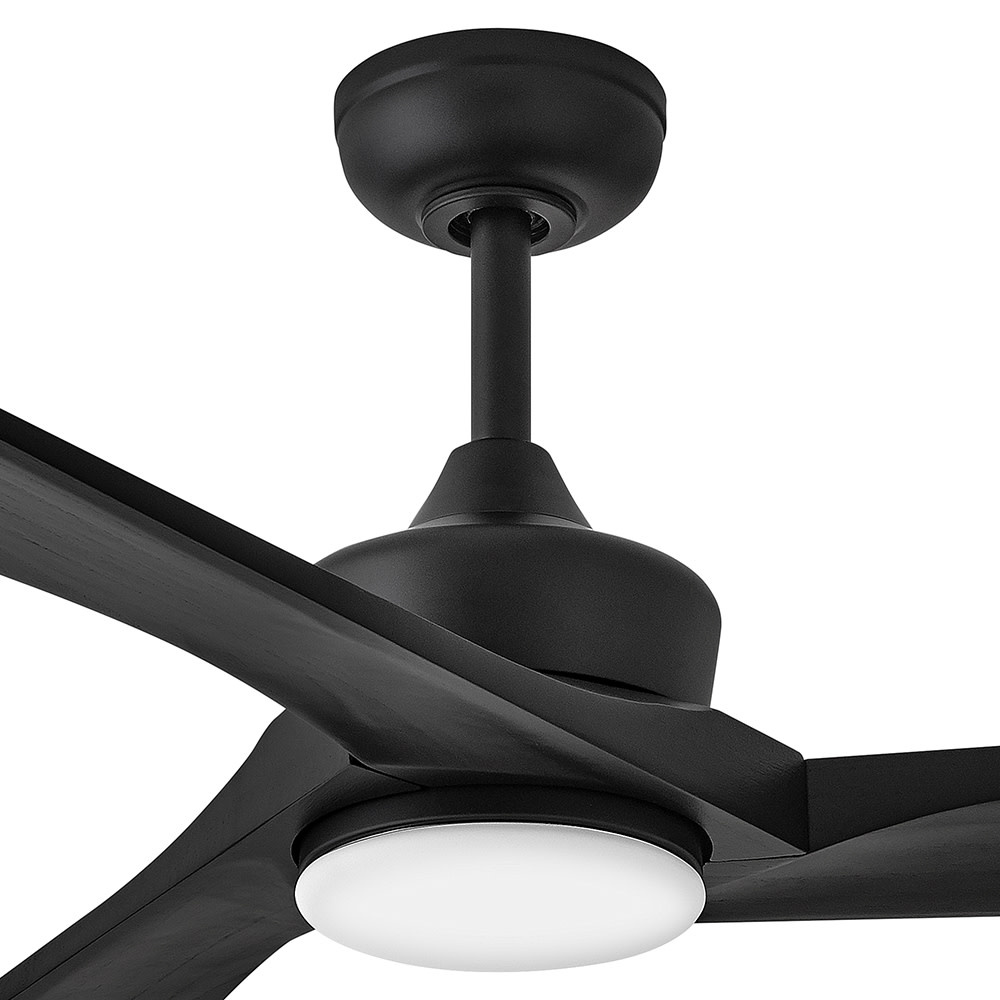

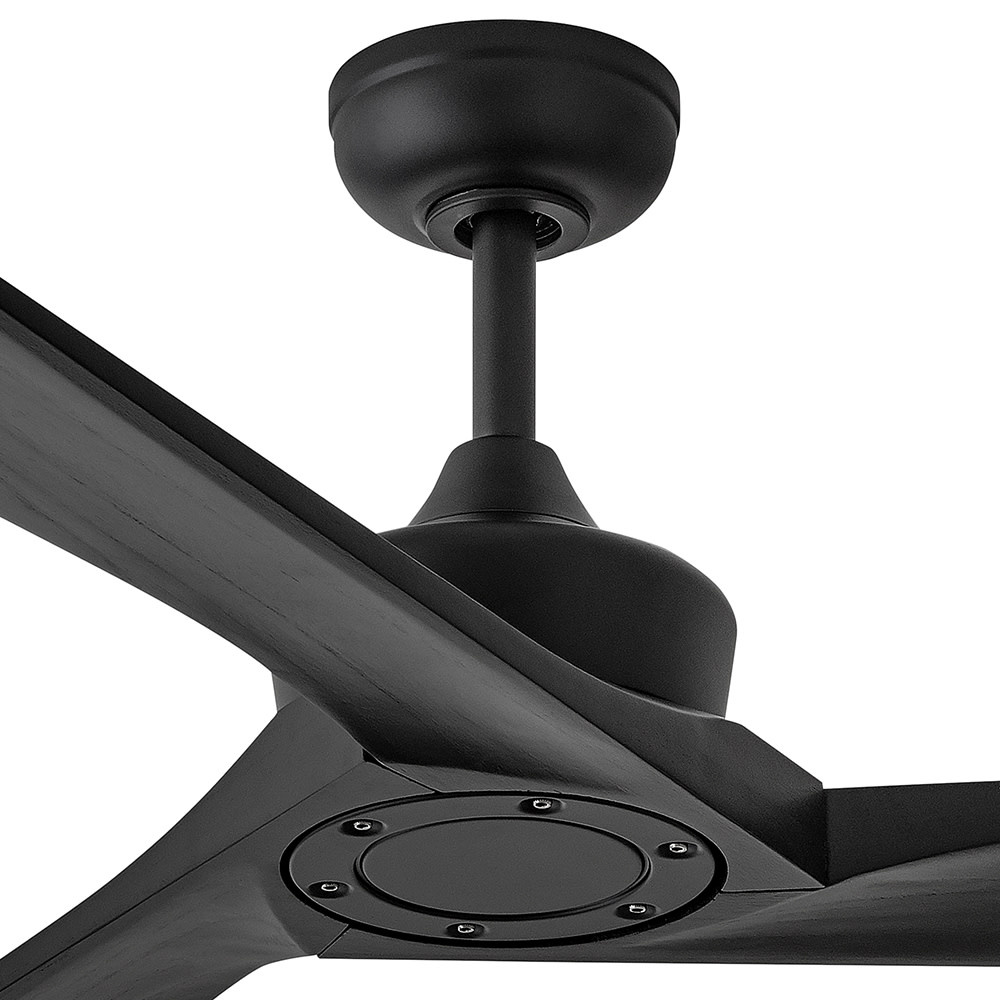

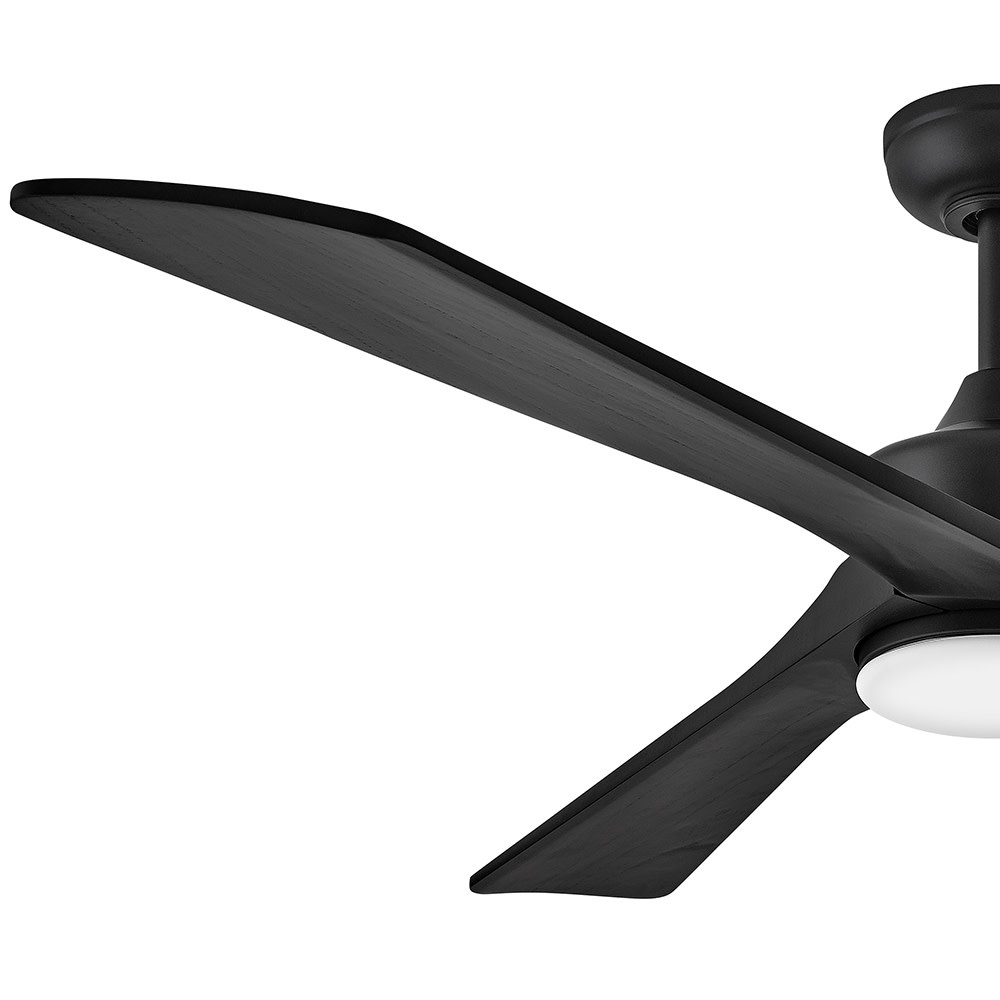

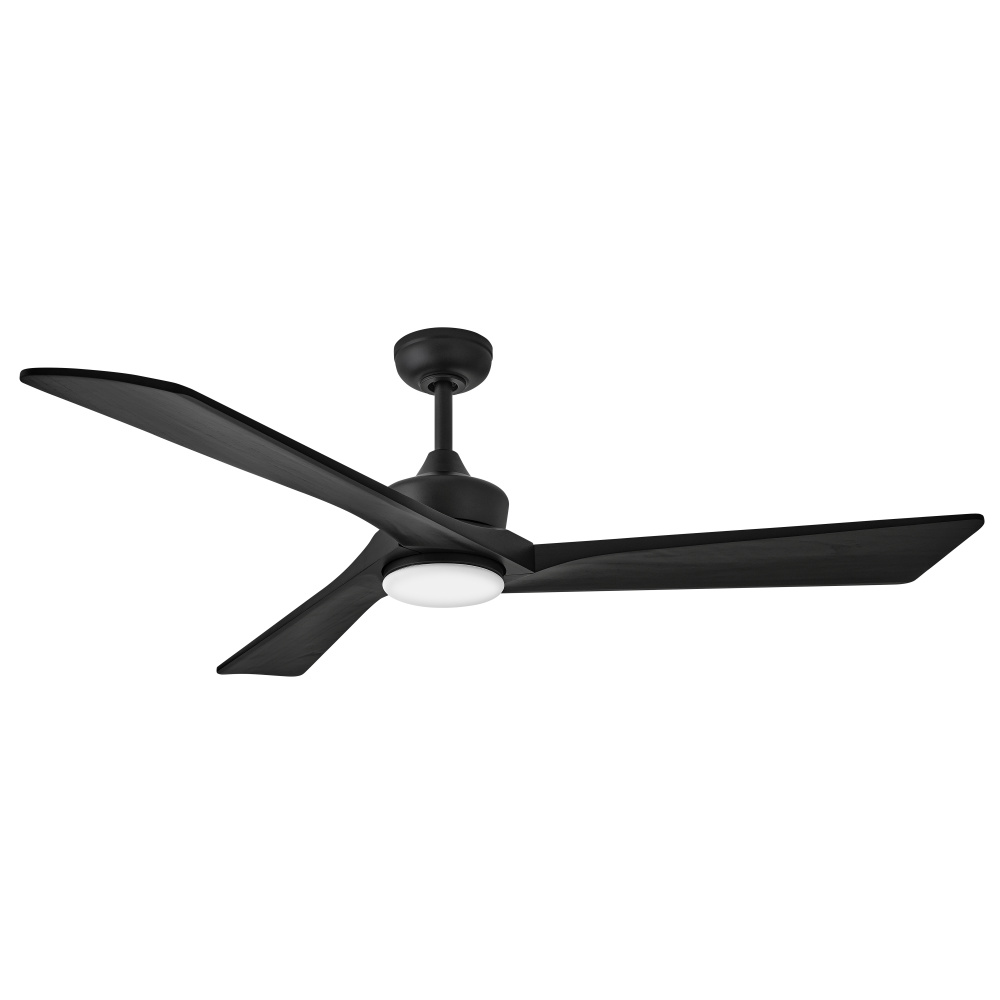

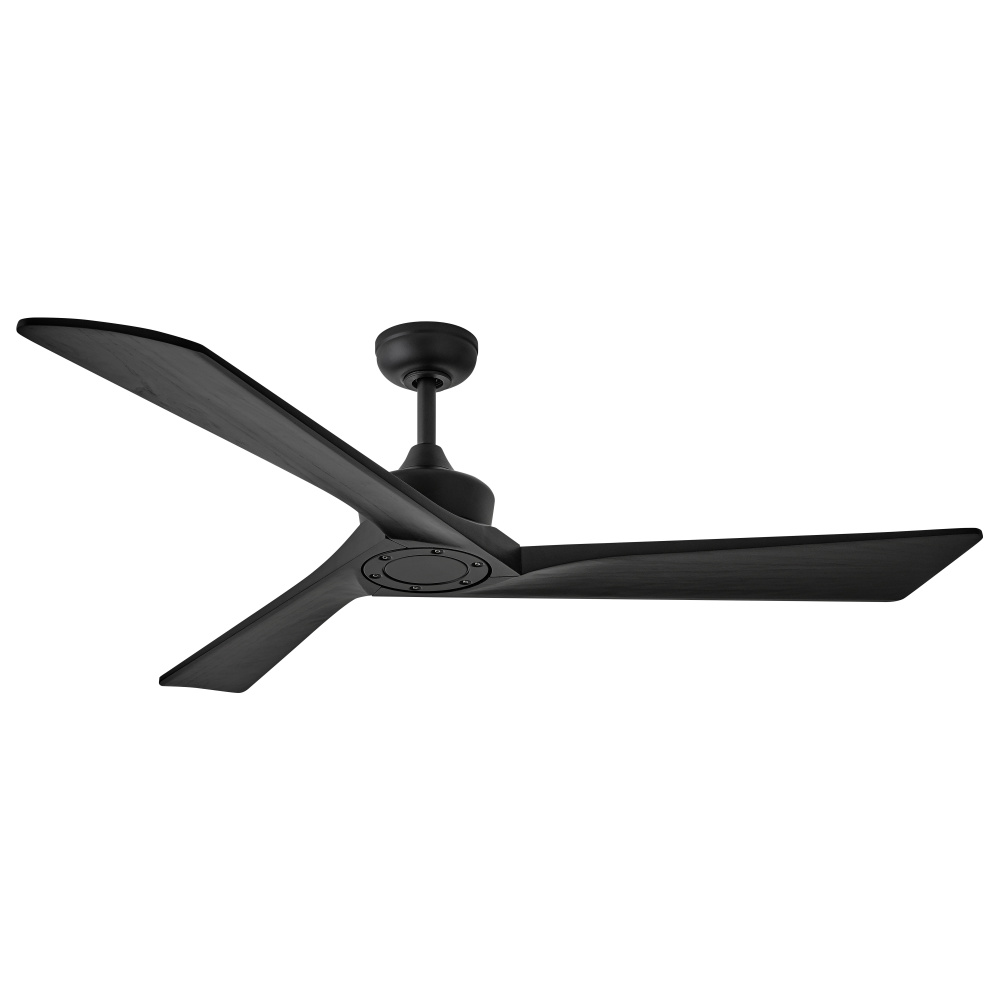

Sculpt 60" LED Smart Fan
additional image
BASE PRICE:
$
799
00
/ / 1
($799.00 / 1)
WAS
$
Call for Price
+
-
Add To Quote
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
9X333

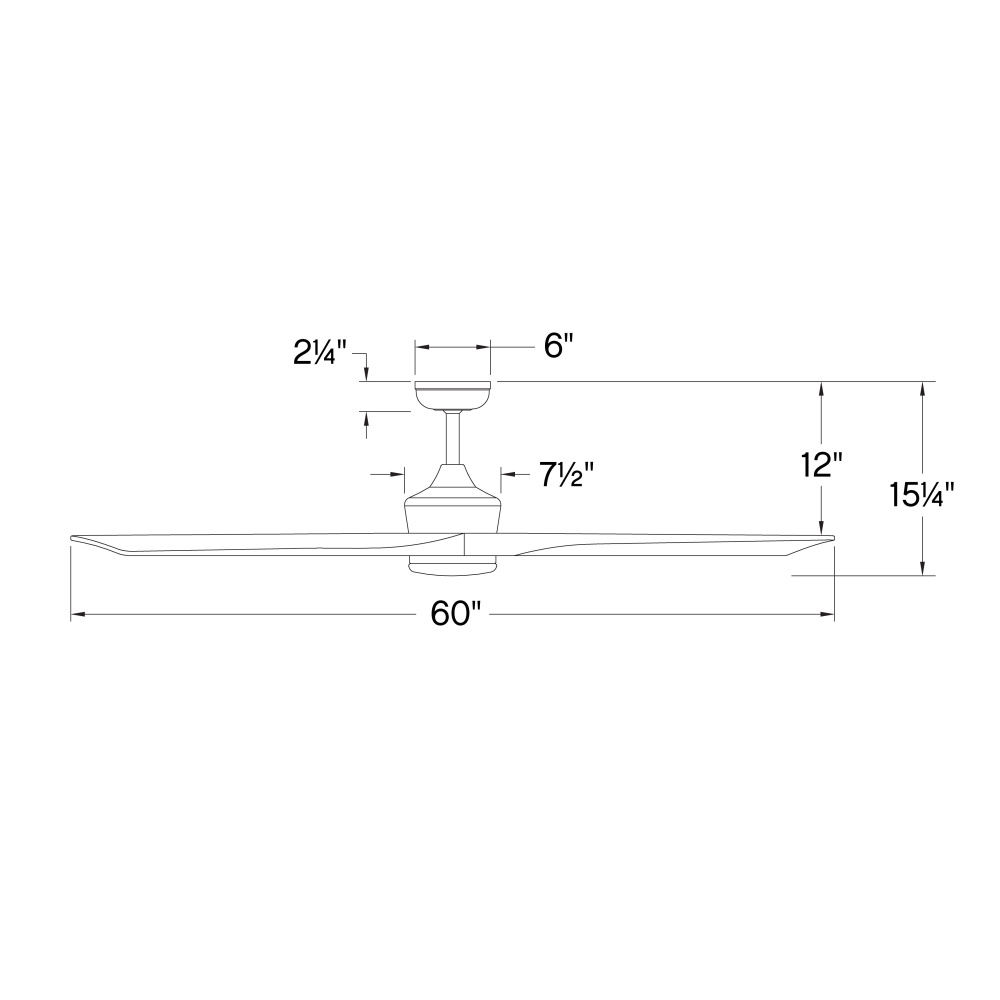

Dimensions:
Height: 15.25"
Width: 60.00"
Length: 60.00"
Changes Other Selections...
Availability:
  • Manufacturer has 181 items available.
Included Items
Bulbs: (1) x 16 Watt LED
Description
Details
Downloads

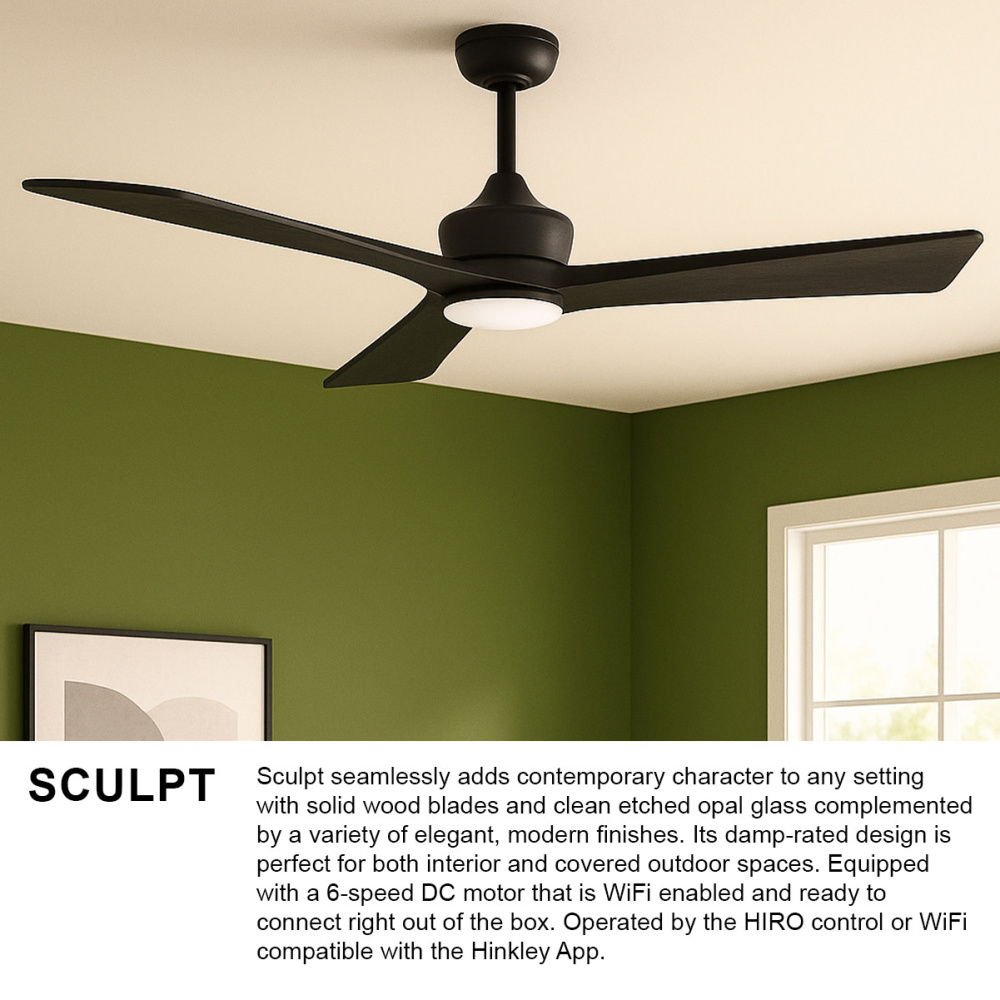

Sculpt defines modern elegance, featuring solid wood complemented by clean etched opal glass, seamlessly adding contemporary character to any setting. Available in a variety of finish and blade combinations. Damp rated for both interior and covered outdoor spaces. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Black
Style:
Modern
Category:
Fan
Finish:
Matte Black
Style:
Modern
Family:
Sculpt
Glass:
Etched Opal
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
7344
Amperage:
0.48
Blade Finish:
Matte Black
Blade Pitch:
9
Blade Span:
60
Blades Included:
Yes
Bulb Dimmable:
Yes, CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED
Canopy:
6 Dia. x 2.25 D
Introduction Date:
01/01/2024
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Type:
DC
Ship Carton Height:
11.42
Ship Carton Length:
46
Ship Carton Width:
16.4
Ship Weight:
24.43
Vendor Ship Method:
Parcel
Weight:
14.75
Airflow Avg:
4956
AMPS Avg:
0.27
Avg Airflow Efficiency:
223
Avg Energy Use Watts:
22

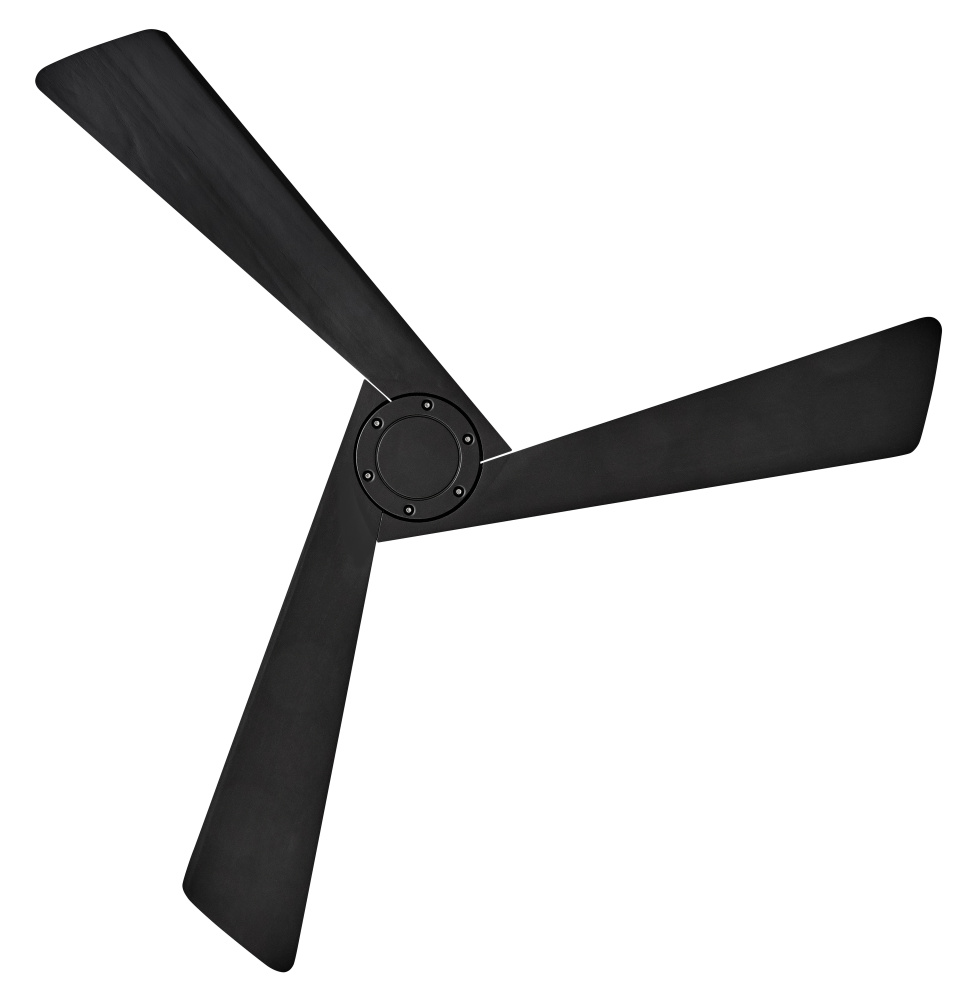

Blade Material:
Wood

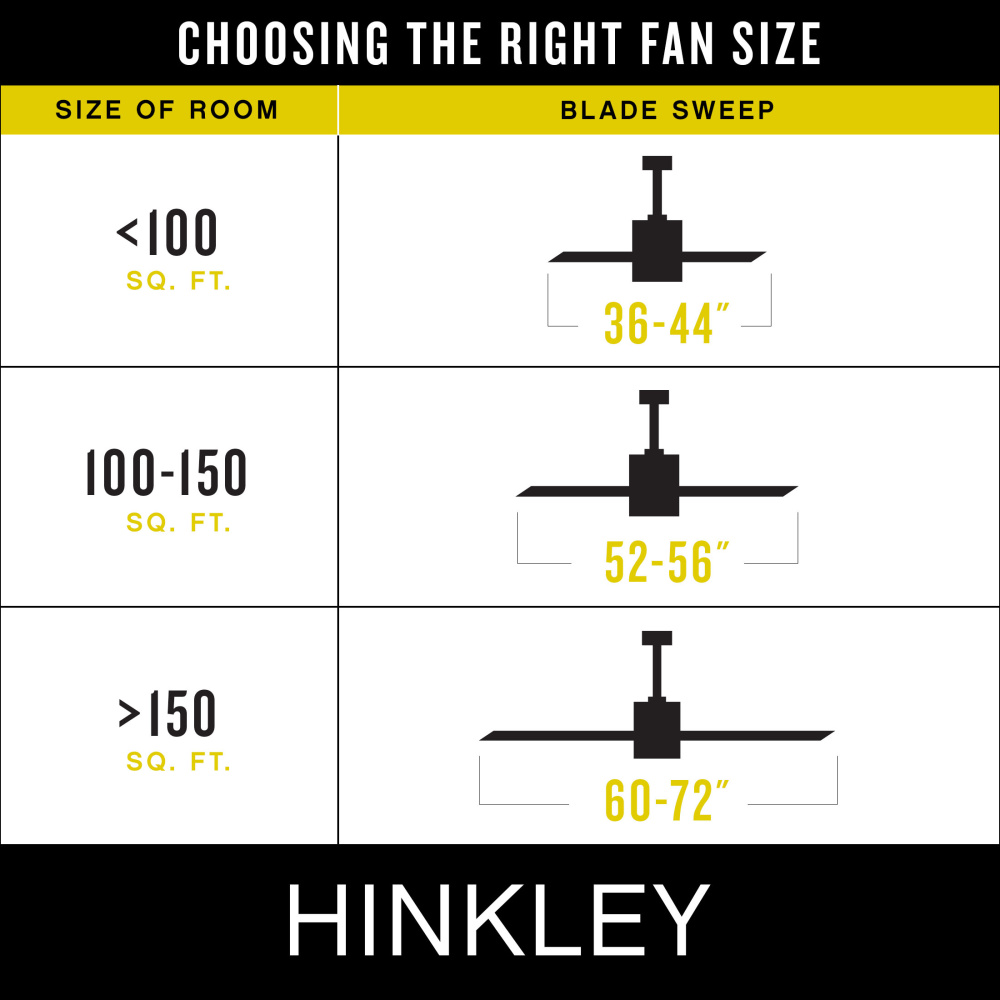

Blade Sweep:
60
Blade To Ceiling Height:
12
Bulb CRI:
90
Bulb Included:
Yes
Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
CHINA
Dual Mount:
No
Efficiency High:
211
Energy Cost Avg:
6
Energy Cost High:
9.74
Energy Use High:
34.7
Fan Control:
Yes
Flush Mount Fan:
No
Glass Groups:
White
Incandescent Equivalency:
100 W
Install Sloped Ceiling:
Yes
Light Kit Adaptable:
No
Light Source:
Integrated LED
Location Rating:
Damp
Max Wattage:
16 W
Motor Fan Speed:
6
Motor Name:
DCS-30NS
Number of Blades:
3
Operating Frequency:
60
Prop 65 Description:
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
122
RPMS High:
185
Safety Rating:
UL Approved
Single Power Switch:
No
Slope Degree:
20
Stand By Power:
0.92
Title 24:
No
WIFI Control Included:
Yes


Additional Information:
  • Blades, controls, switches, capacitors and hardware carry a 1-year warranty
  • Bold silhouette with dramatic details creates a modern statement
  • Eco-Friendly Packaging

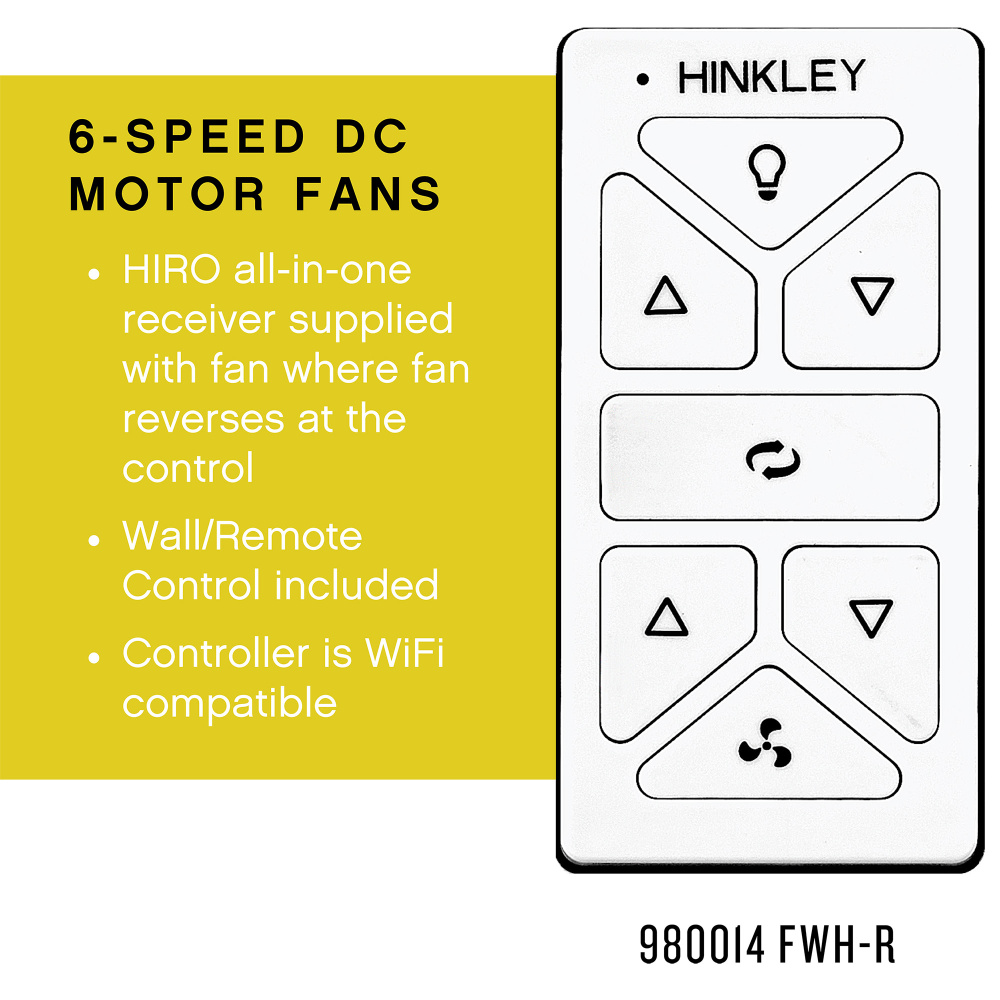

  • Fan Control included, 6 Spd HIRO:R
  • Fan Control included, HIRO Control - 6 Speed Reversing
  • FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling
  • Fans should be installed at a minimum of 7 feet from the floor
  • For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
  • LED components carry a 5-year limited warranty
  • Motor carries a lifetime warranty
  • Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
  • This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
  • This item may be hung on a sloped ceiling
  • This product uses recyclable or limited packaging materials to help reduce waste.
  • WiFi compatible with included fan control
