Product Overview

Momentum; 4 Foot LED Connectable Linear Strip; Up and Down Selectable; Black Finish

Standard Information

Option:

LED

Prop 65

Refinement Options

Category:

Linear Strip

Sub Category:

Strip Fixture

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Soft White to Natural Light

Dimmable:

Yes-Dimmable

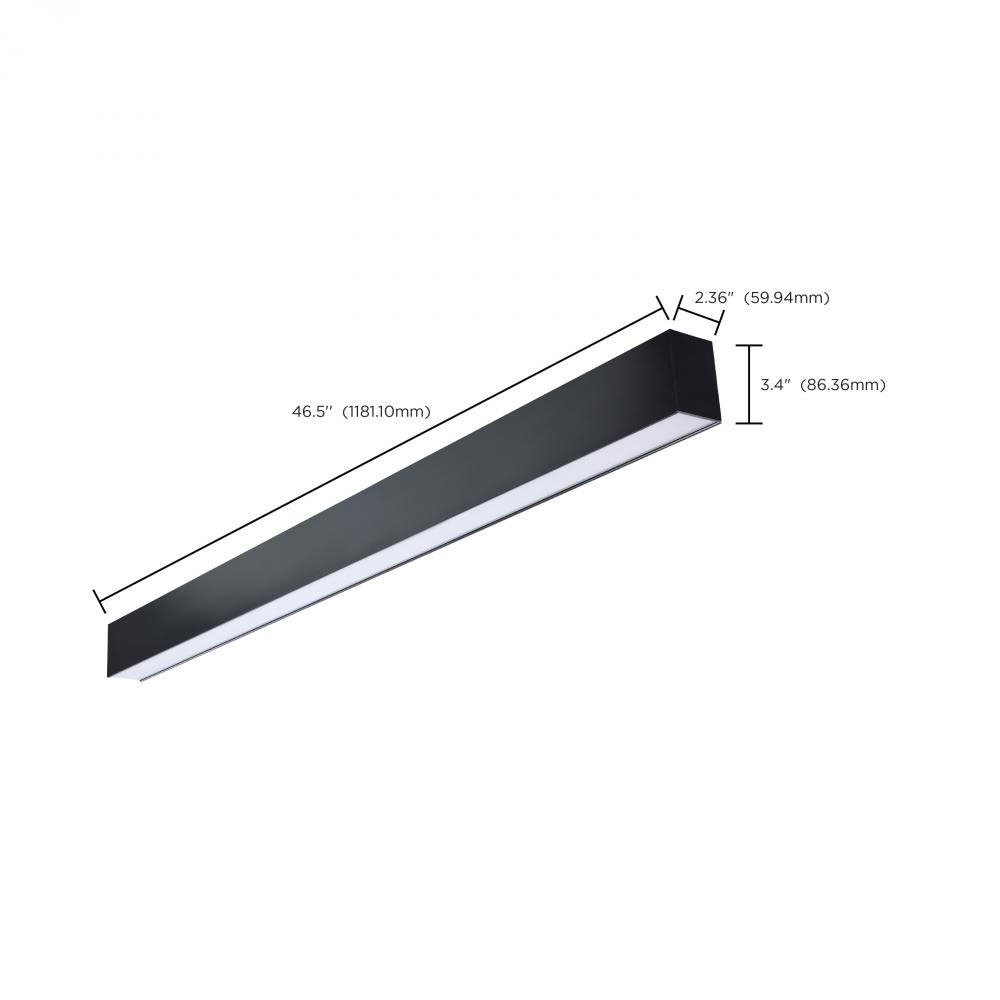

Each Height:

3.66

Each Length:

48.19

Each Width:

4.72

Length:

46.5

Lumens:

3300L/4400L/5500L

Tariff Code:

9405.11.6010

Warranty:

5-Years

Amps:

0.250-0.086/0.333-0.115/0.417-0.144A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Thailand

CRI:

80+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

0-10V

DLC Classification:

Standard

DLC Primary Use:

Direct Linear Ambient Luminaires

Each Cube:

0.4818

Each Quantity:

1

Efficacy:

110.00 LPW

FCC Compliant:

Yes

Feature 1:

4-foot

Feature 2:

Black Finish

Feature 3:

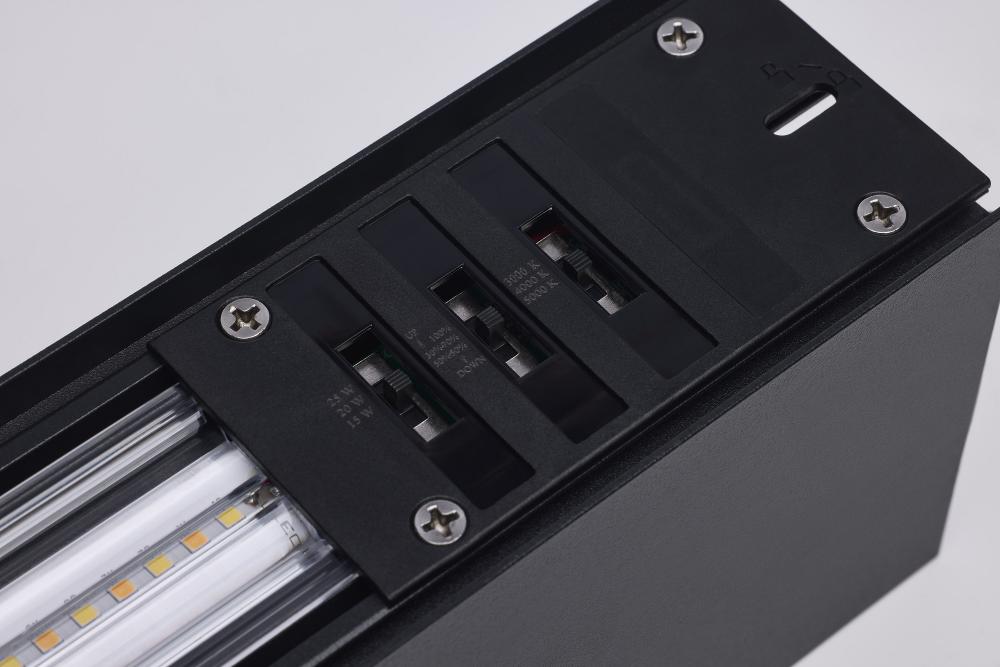

Field Selectable; Wattage and CCT

Feature 4:

Compatible with L, T, X, and Y Connectors

Feature 5:

Mounting Options Include: Surface, Recessed, Suspension and Wall Mounting

Feature 6:

Compatible with Select PIR Sensors

Feature 7:

Aluminum Housing

Feature 8:

Durable Polycarbonate Lens

Finish Family:

Black

Fixture shape:

Linear

Flicker Free:

Yes

Has Camera:

No

Has Emergency Battery:

No

Indoor Outdoor:

Indoor

IOT Enabled:

No

JA8 Compliant:

No

Long Description:

The SATCO/NUVO Momentum 65-1281 delivers a seamless, customizable lighting solution engineered for architects, designers, and installers who need both precision and flexibility in commercial, hospitality, retail, institutional, and modern office environmen

Material:

Steel

Mounting Procedure:

Ceiling/Wall

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.93

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

The SATCO/NUVO Momentum system delivers a seamless, customizable lighting solution engineered for architects, designers, and installers who need both precision and flexibility in commercial, hospitality, retail, institutional, and modern office environment

Safety Listing:

cETLus

Short Description:

4' LED CONNECTABLE LINEAR

Specification Notes:

Max Wattage when connected at 120V: 700W; Max Wattage when connected at 277V: 1400W; Max Wattage when connected at 347V: 1750W

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

11.3%

Wattage Selectable:

Yes

Weight Lb.:

6.61
