Part Number: NYV0X / Vendor ID #: 329

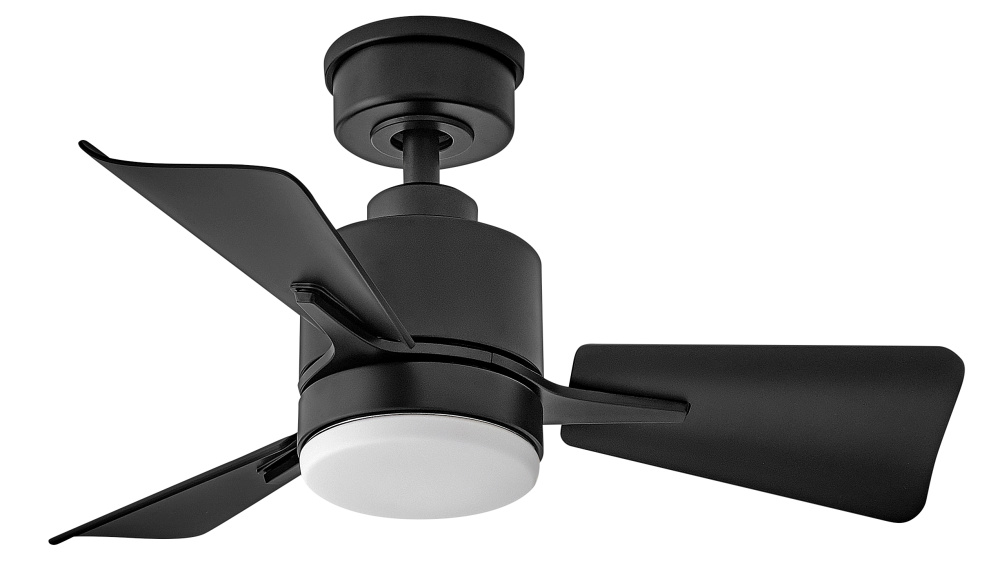

Atom 30" LED Fan

$385.28

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 247 items available.
More Items available 01/08/2026.

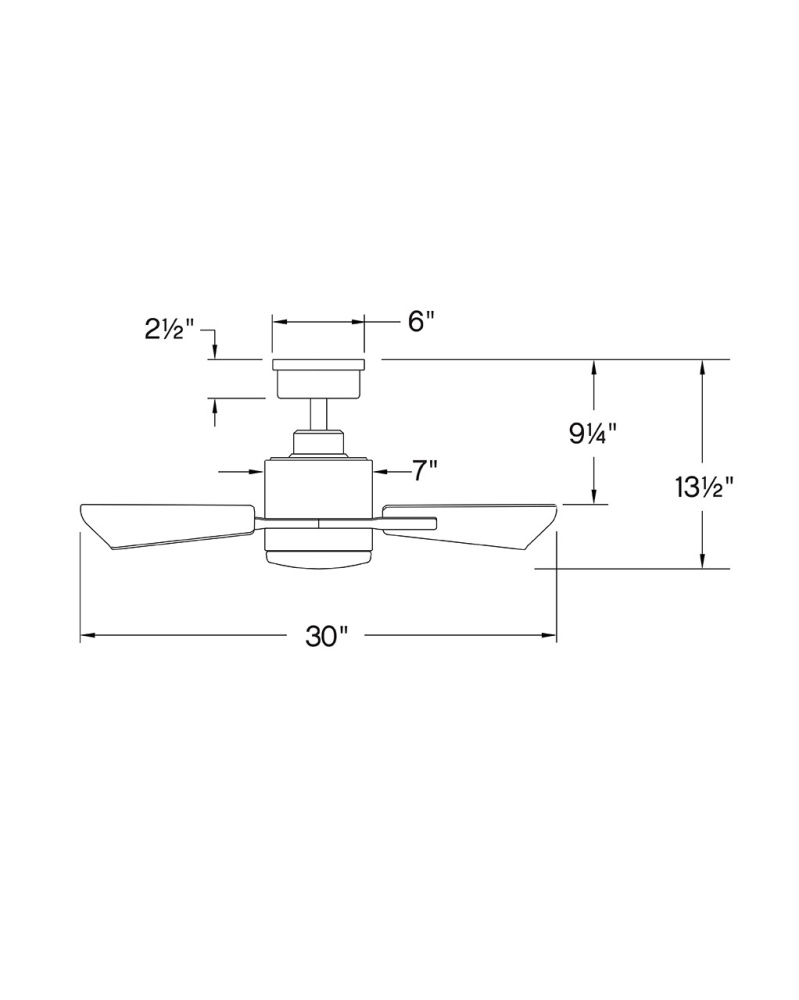

Dimensions

Height: 13.25"

Width: 30.00"

Length: 30.00"

Info & Guides

Finish: Matte Black

Blade Finish: Matte Black

Product Overview

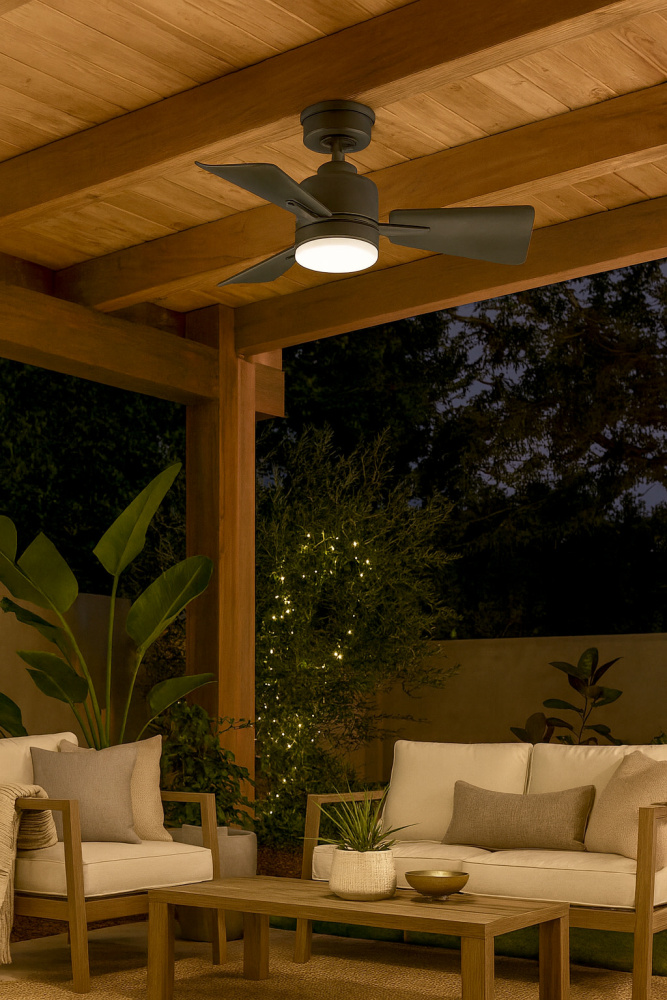

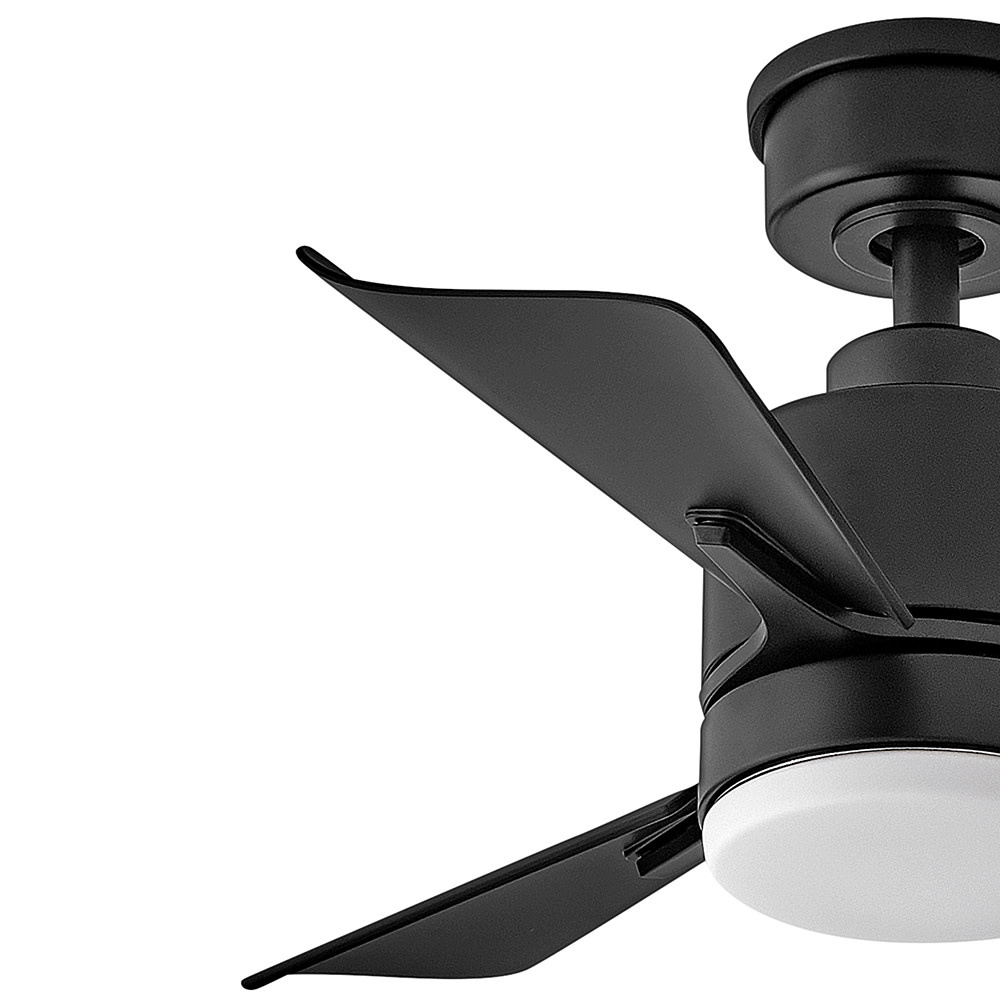

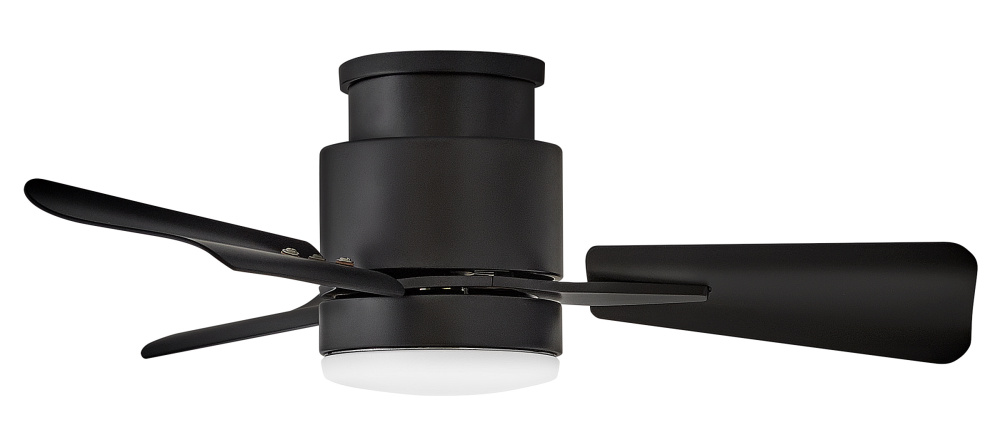

Part of the Regency Series, Atom's compact modern profile complements functionality with classic finishes to perfectly accentuate smaller spaces. Its damp-rated design is suitable for both interior and covered outdoor areas. Dimmable Integrated LEDs emit warm, even light, creating a comfortable atmosphere. Atom mounts directly to its canopy or with the included downrod for dual mount capability. This will result in an overall fan height of 10" and a ceiling-to-blade height of 5 3/4

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Black

Style:

Traditional

Option:

Title 24

Damp Rated

Refinement Options

Category:

Fan

Finish:

Matte Black

Style:

Traditional

Family:

Atom

Glass:

Etched Opal

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow Efficiency:

2845

Amperage:

0.46

Blade Finish:

Matte Black

Blade Pitch:

Blade Span:

Blades Included:

Yes

Bulb Dimmable:

Yes - CL Type Dimmer (SSL7A)

Bulb Hours:

50000

Bulb Type:

LED

Canopy:

6 Dia. x 2.25 D

Introduction Date:

01/01/2024

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1320

Material:

Steel

Motor Size:

153 x 12

Motor Type:

Ship Carton Height:

9.53

Ship Carton Length:

17.44

Ship Carton Width:

16.38

Ship Weight:

15.26

Vendor Ship Method:

Parcel

Weight:

13.23

Airflow Avg:

2114

AMPS Avg:

0.34

Avg Energy Use:

Blade Material:

Composite

Blade Options Available:

Blade To Ceiling Height:

Blades Reversible:

Bulb CRI:

Bulb Included:

Yes

Country of Origin:

China

DM Airflow Avg:

1690

DM Airflow High:

2314

DM AMPS Avg:

0.32

DM AMPS High:

0.43

DM Avg Energy Use:

DM Efficiency Avg:

DM Efficiency High:

49.2

DM Energy Cost Avg:

DM Energy Cost High:

13.18

DM Energy Use High:

DM RPMS Avg:

100

DM RPMS High:

223

Dual Mount:

Yes

Efficiency Avg:

Efficiency High:

Energy Cost Avg:

Energy Cost High:

15.36

Energy Use High:

54.8

Fan Control:

Yes

Flush Mount Fan:

Incandescent Equivalency:

100 W

Light Kit Adaptable:

Light Source:

Integrated LED

Location Rating:

Damp Rated

Max Wattage:

16 W

Motor Fan Speed:

Number of Blades:

Operating Frequency:

Prop 65 Description:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

174

RPMS High:

234

Safety Rating:

UL Approved, C-US Approved

Single Power Switch:

Slope:

Sloped Ceiling Adaptable:

Yes

Stand By Power:

0.29

Title 24:

Yes

Blades, controls, switches, capacitors and hardware carry a 1-year warranty

Classic, elegant lines and timeless details enhance a traditional space

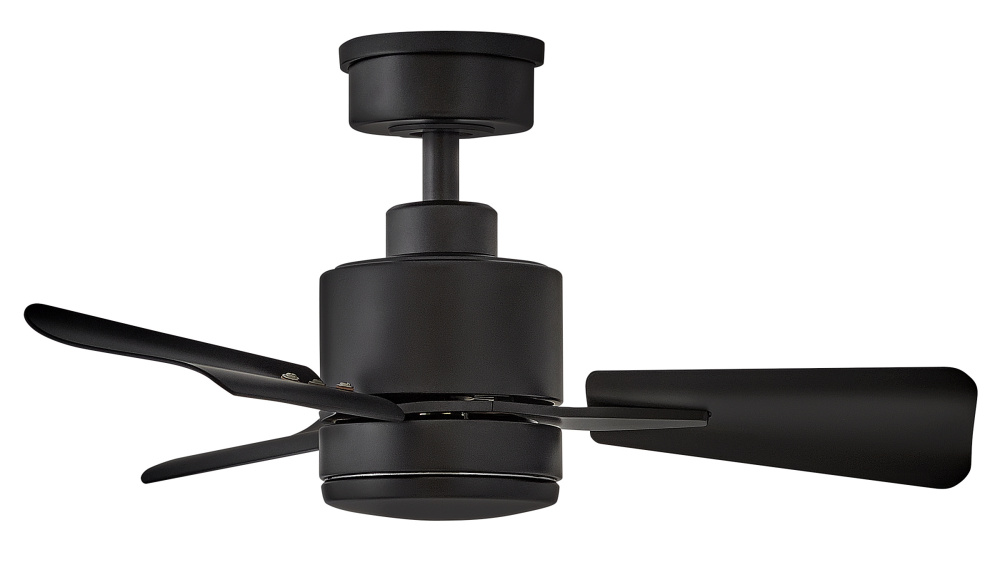

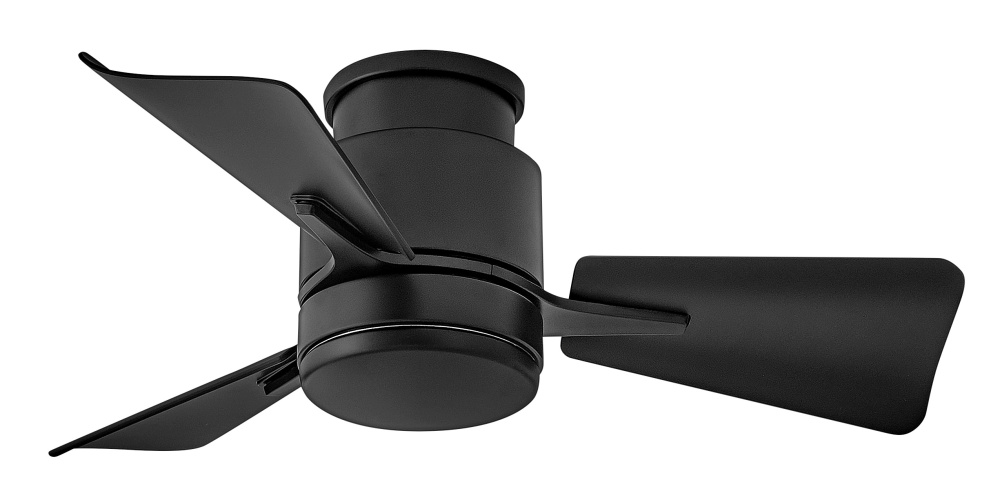

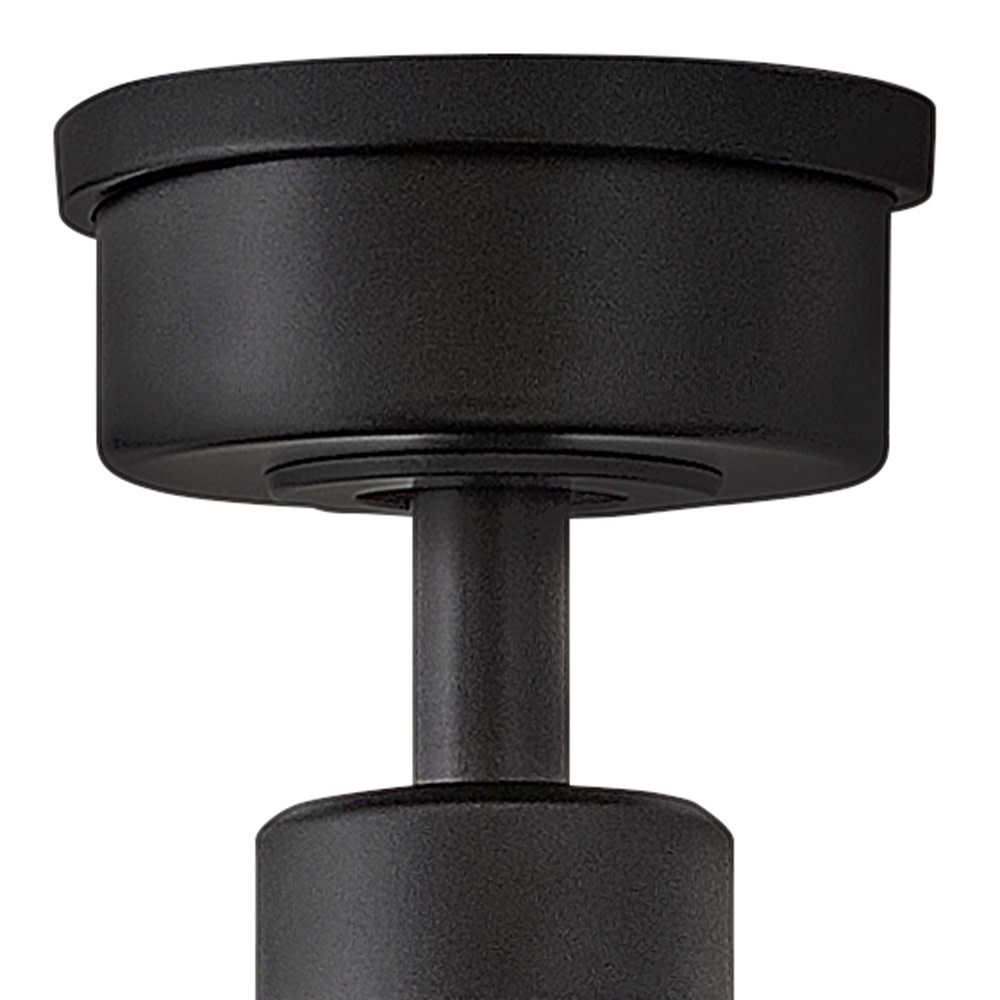

Fan mounts directly to canopy or with an included downrod for dual mount capability

Fans should be installed at a minimum of 7 feet from the floor

For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.

LED components carry a 5-year limited warranty

Motor carries a lifetime warranty

Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.

The Regency Series features a range of traditional ceiling fans designed to enhance a wide variety of spaces with ease.

This item includes a 4.5" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.

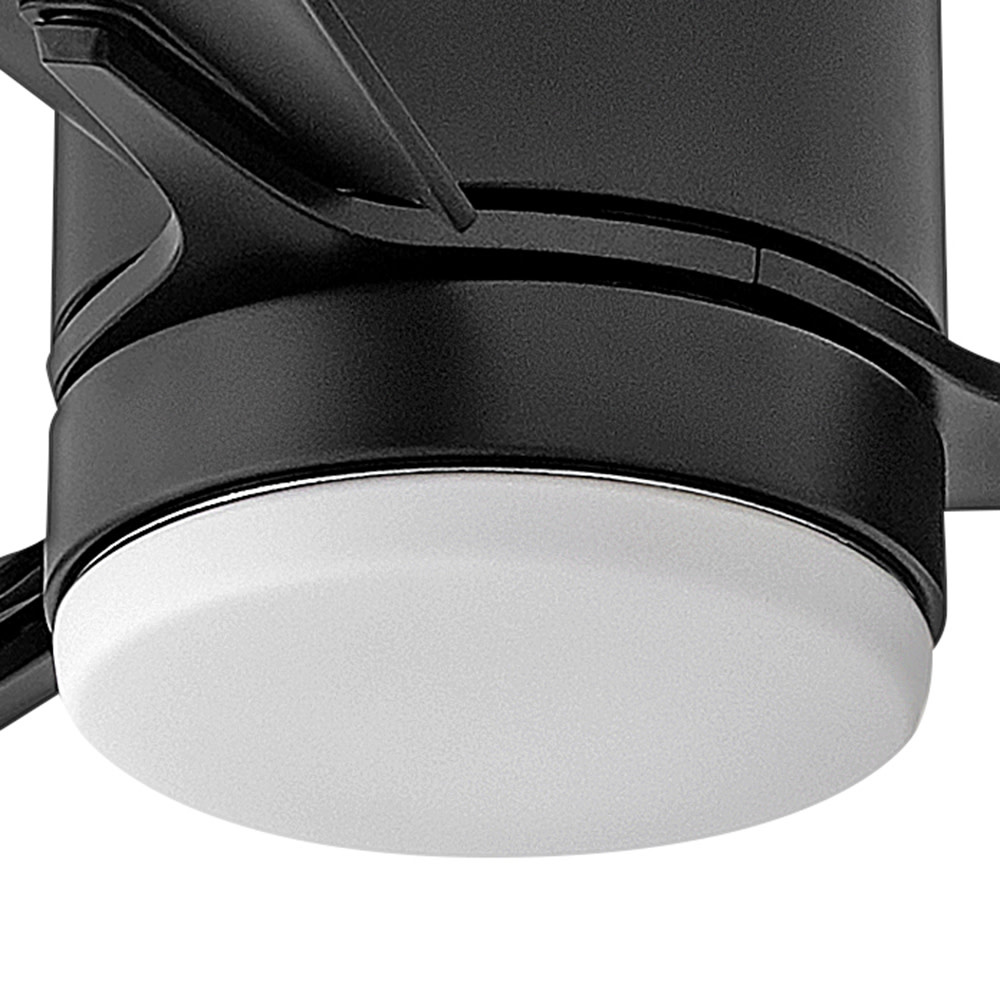

This item includes a light kit cover

This item may be hung on a sloped ceiling
