60/80/100 Watt LED 8 Foot Retrofit Strip Light; 35K/4K/5K CCT Selectable; 120-277 Volt
$158.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer has 222 items available.
Dimensions
Height: 3.30"
Width: 5.89"
Product Overview

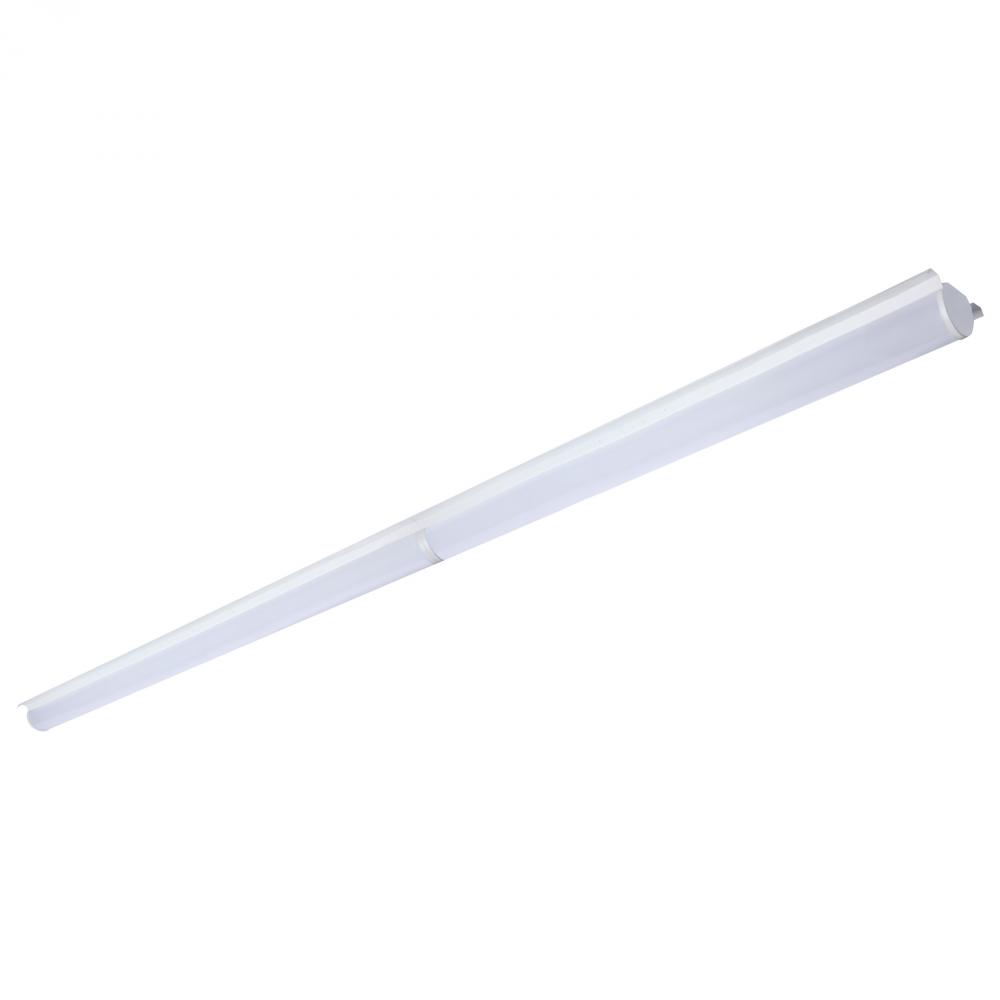

60/80/100 Watt LED 8 Foot Retrofit Strip Light; 35K/4K/5K CCT Selectable; 120-277 Volt
Standard Information
Category:
Utility
Subcategory:
Other Utility
Option:
LED
Prop 65
Refinement Options
Category:
Linear Strip
Sub Category:
Strip Retrofit
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Neutral White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
7.87
Each Length:
48.9
Each Width:
6.69
Length:
95.8
Lumens:
7800L/10400L/13000L
Tariff Code:
9405.11.6010
Warranty:
5-Years
Amps:
0.500-0.217/0.667-0.289/0.833-0.361A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
B_U_G_Rating:
B3-U4-G4
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium; Premium; Standard; Standard
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings; Stairwell and Passageway Luminaires; Retrofit Kits for Direct Linear Ambient Luminaires; Direct Linear Ambient Luminaires
Each Cube:
1.4899
Each Quantity:
1
Efficacy:
130.00 LPW
FCC Compliant:
Yes
Feature 1:

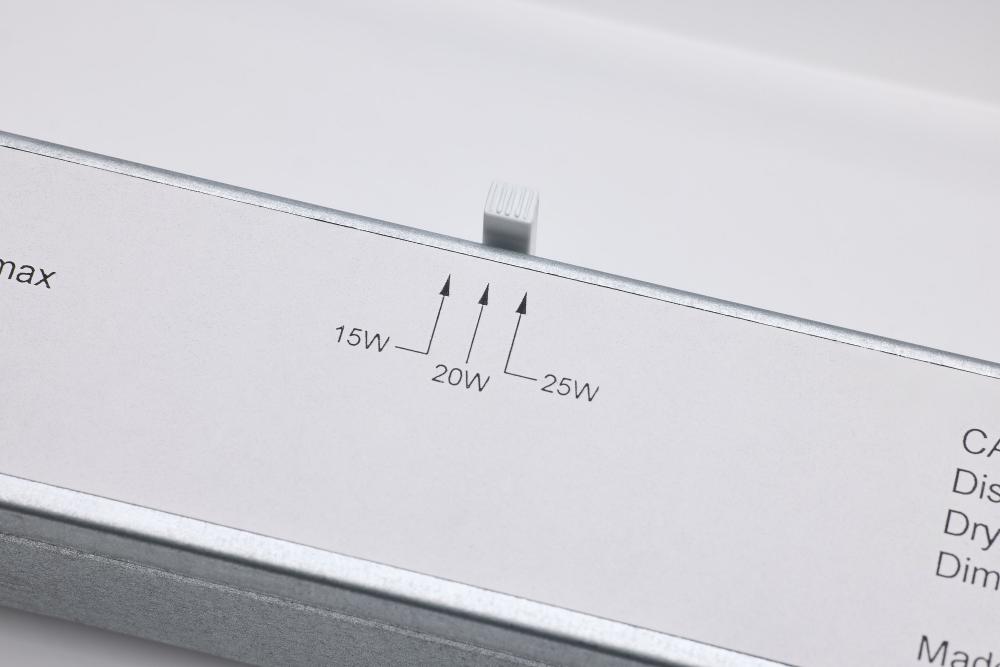

Field Selectable (3 wattages and 3 CCT)
Feature 2:
Retrofit Existing 2.75"-5.25" Wide Strip Fixtures
Feature 3:
Adjustable Installation Strips
Feature 4:
Smooth Frosted Lens for Even Light Distribution
Feature 5:
8-foot Steel Construction
Feature 6:
0-10V Dimmable
Feature 7:
Damp Location Rated
Feature 8:
50,000 Hour Functional Life
Feature 9:
5 Year Warranty
Finish Family:
White
Flr Equiv:
6 x 32W T8
Has Camera:
No
Has Emergency Battery:
No
Indoor Outdoor:
Indoor
Installation Notes:
Default CCT setting is 4000K. Default Wattage setting is 100W.
IOT Enabled:
No
JA8 Compliant:
No
Lens Finish:
Glossy Frosted
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's LED Strip Retrofit Kit, 65-1032, is an energy-efficient upgrade for existing fluorescent fixtures. Designed with adjustable mounting strips to fit housings 2.75"–5.25" wide, this 8ft kit features field-selectable CCT and wattage,
Material:
Steel
Mounting Height:
1
Mounting Length:
96
Mounting Procedure:
Ceiling/Wall
Mounting Width:
2.75
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
50
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's new LED Strip Retrofit Kits offer an energy-efficient solution for upgrading existing fluorescent strip fixtures. Designed with adjustable mounting strips to retrofit housings from 2.75" to 5.25" wide, these kits accommodate a wide
