Product Overview

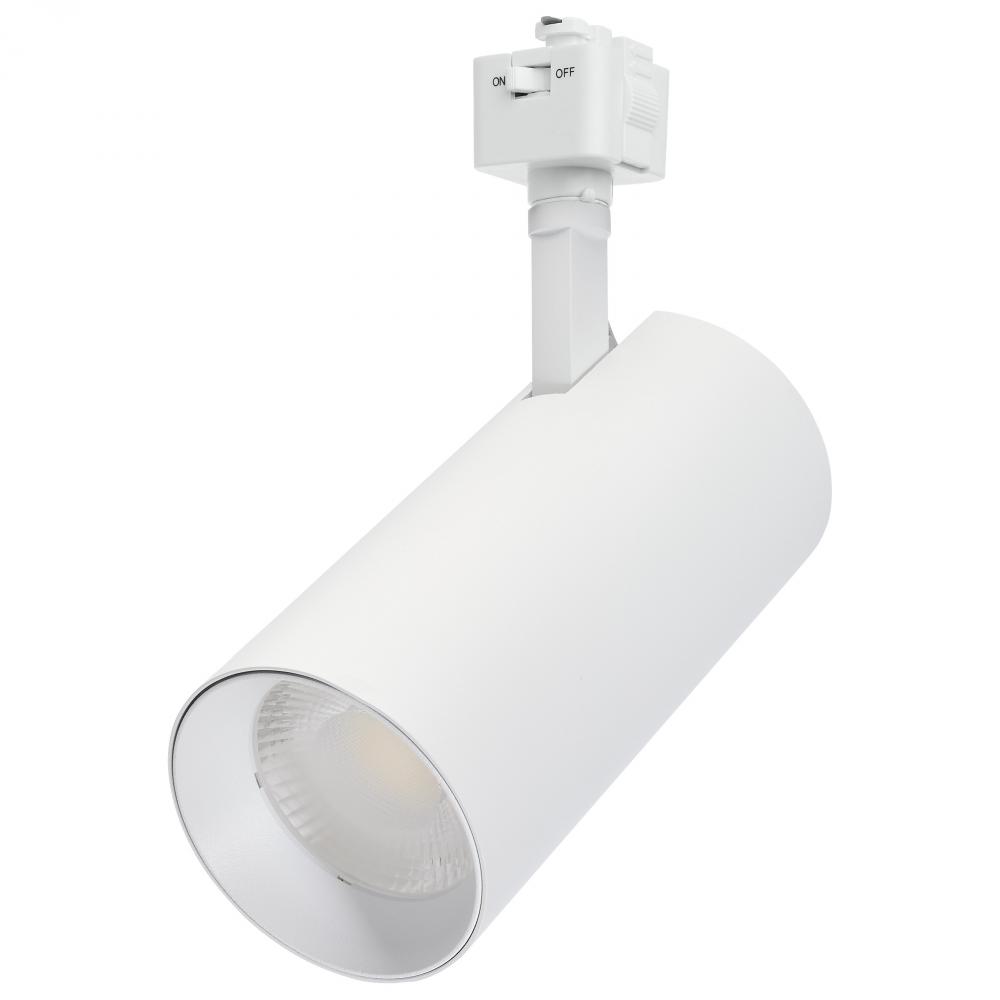

30 Watt LED Track Head; 36 Degree Beam Spread; J-Style Track; 5 CCT Selectable; Matte White Finish

Standard Information

Category:

Track Ltg.

Subcategory:

Track Heads

Option:

LED

Prop 65

Refinement Options

Category:

Track Lighting

Sub Category:

Track Head

Style:

Contemporary

Bulb Volts1:

120V

Avg Rated Hours:

30000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White to Natural Light

Dimmable:

Yes-Dimmable

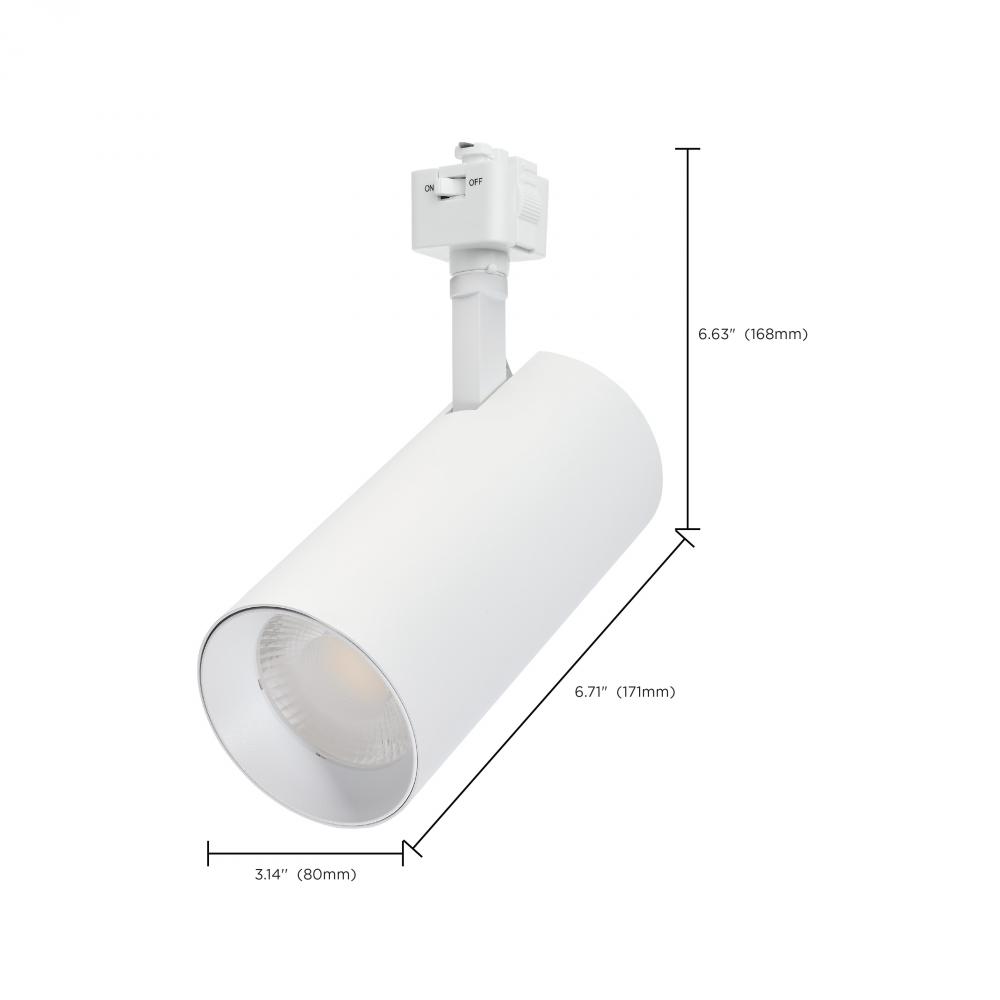

Each Height:

9.449999999999999

Each Length:

3.78

Each Width:

3.39

Length:

6.71

Lumens:

2100L

Tariff Code:

9405.11.6020

Warranty:

3-Years

Amps:

0.270A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

36

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

California T24 2016 - 2025 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Vietnam

CRI:

90+

Dimmable Function:

120V only

Dimming Type:

Triac

Each Cube:

0.0701

Each Quantity:

1

Efficacy:

70.00 LPW

FCC Compliant:

Yes

Feature 1:

J-Style Single and 2 Circuit Track Compatible

Feature 2:

36 Degree Beam Angle

Feature 3:

5 CCT Selectable

Feature 4:

90 CRI High Quality Light

Feature 5:

Matte White Finish

Feature 6:

Dimmable

Feature 7:

T24 Compliant

Feature 8:

30,000 Life Hours

Feature 9:

3 Year Warranty

Finish Family:

White

Has Camera:

No

Has Emergency Battery:

No

Incandescent Equivalent:

150W

Indoor Outdoor:

Indoor

IOT Enabled:

No

JA8 Compliant:

Yes

Lens Finish:

Clear

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

New to SATCO NUVO, the TH5021 LED CCT Selectable track head fixture is finished in matte white, operates at 30 watts, and features a focused 36-degree beam angle-ideal for compact spotlighting applications. Now compatible with both Single Circuit and 2 Cir

Material:

Aluminum / Steel

Mounting Procedure:

Track

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

New to SATCO NUVO, these LED CCT Selectable track head fixtures are now compatible with both Single Circuit and 2 Circuit J-Style track systems, offering expanded versatility for a range of lighting applications. J-Style track-widely used in residential an

Safety Listing:

cETLus - Listed

Short Description:

30W CCT LED TRK 36 WHT J-STYLE

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Track Head Style:

J-Style

Wattage Selectable:

No

Weight Lb.:

1.57
