28W Field Selectable LED 8-Inch Commercial Downlight; Dual Dimming; Integrated Emergency Driver;
$299.90
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer has 150 items available.
Dimensions
Height: 4.02"
Width: 9.76"
Product Overview

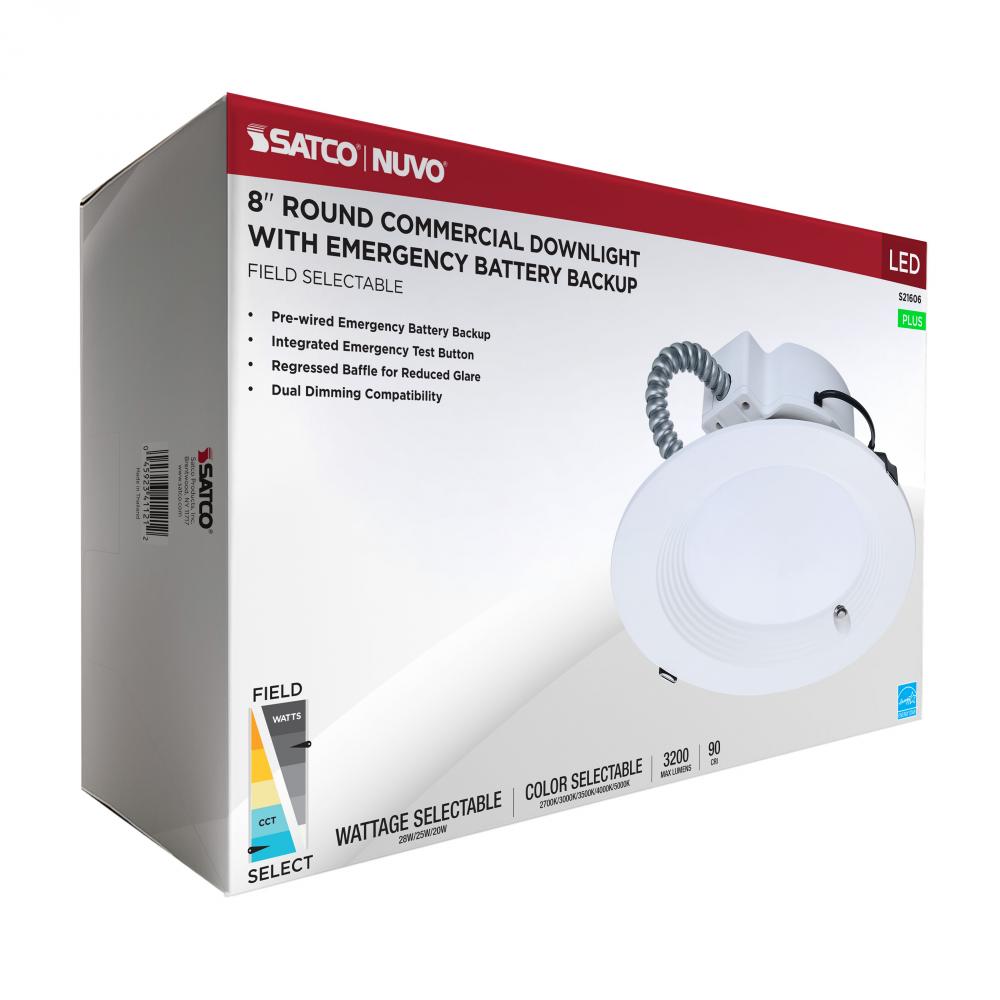

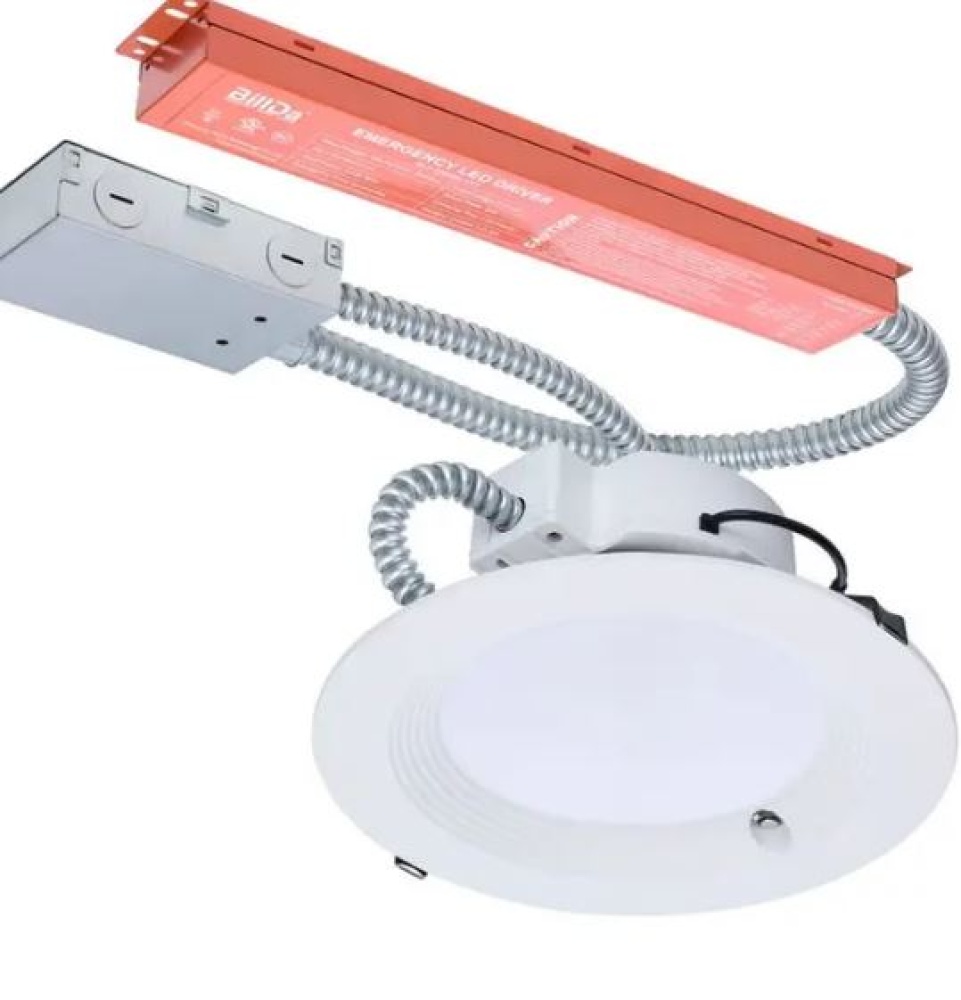

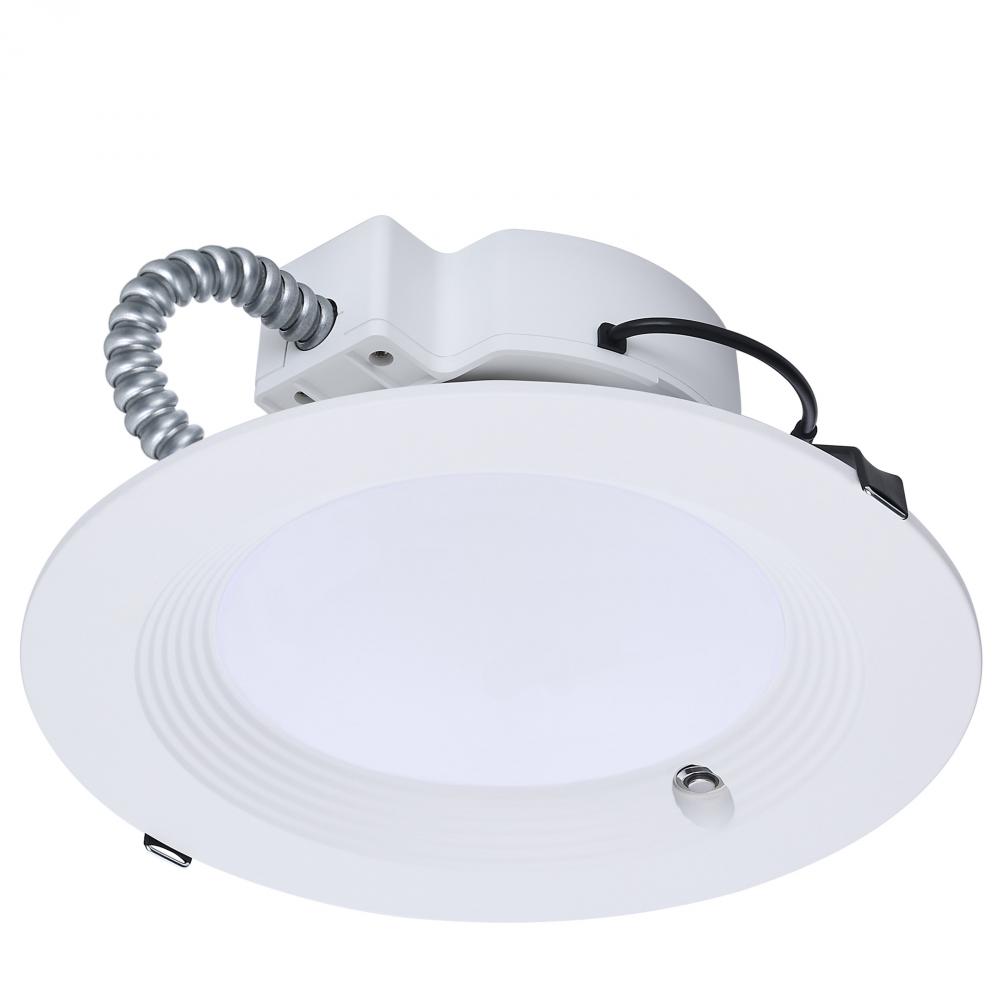

28W Field Selectable LED 8-Inch Commercial Downlight; Dual Dimming; Integrated Emergency Driver; Round; 120-347 Volt
Standard Information
Option:
Energy Star
LED
Prop 65
Refinement Options
Category:
Recessed
Sub Category:
Commercial
Style:
Utility
Additional Info:
90 Minute EM Battery Runtime
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
9.76
Dimmable:
Yes-Dimmable
Each Height:
16.85
Each Length:
10.63
Each Width:
4.21
Lumens:
3200L/2900L/2200L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.213-0.073/0.188-0.065/0.143-0.050A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
Lithium-ion (Li-ion)
Beam Angle:
100
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2025 JA8 Listed;T20 SBCS Listed under Billda Item BLD-HMXXD-YYY
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Closet Rated:
No

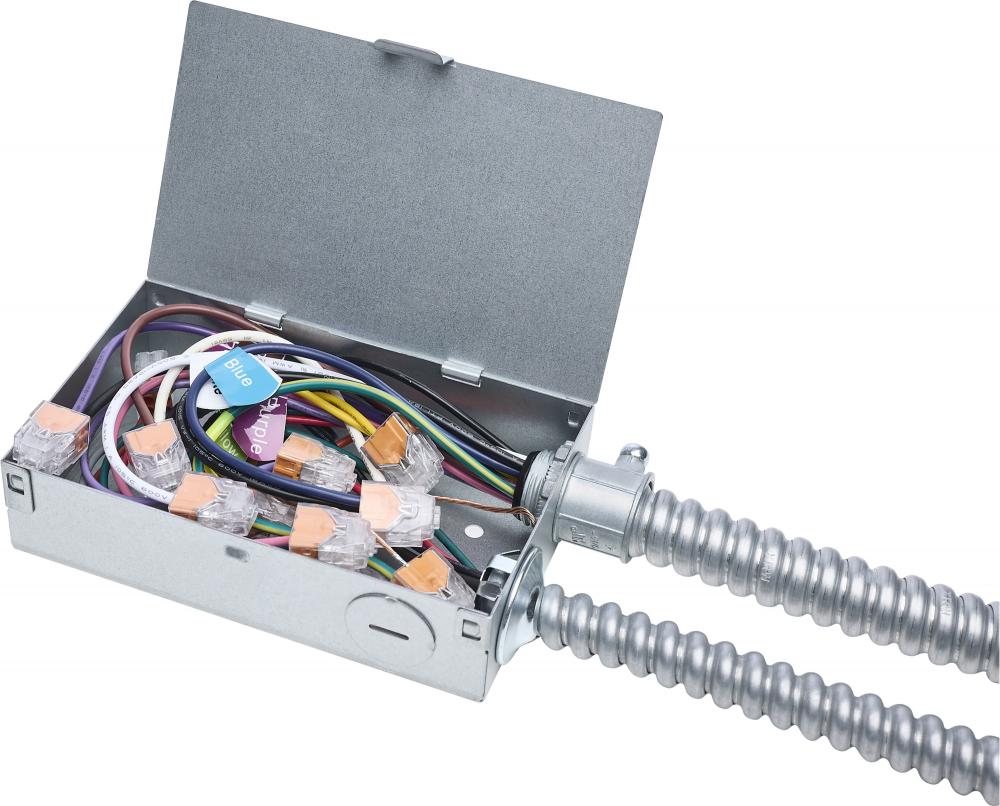

Connection:
Hardwire
Country Of Origin:
Thailand
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
Phase Cut at 120V/0-10V at 120-347V
Dimming Type:
Dual Dimming
Each Cube:
0.4364
Each Quantity:
1
Efficacy:
114.29 LPW
ES Category:
Downlight Recessed
ES Unique ID:
4510061
FCC Compliant:
Yes

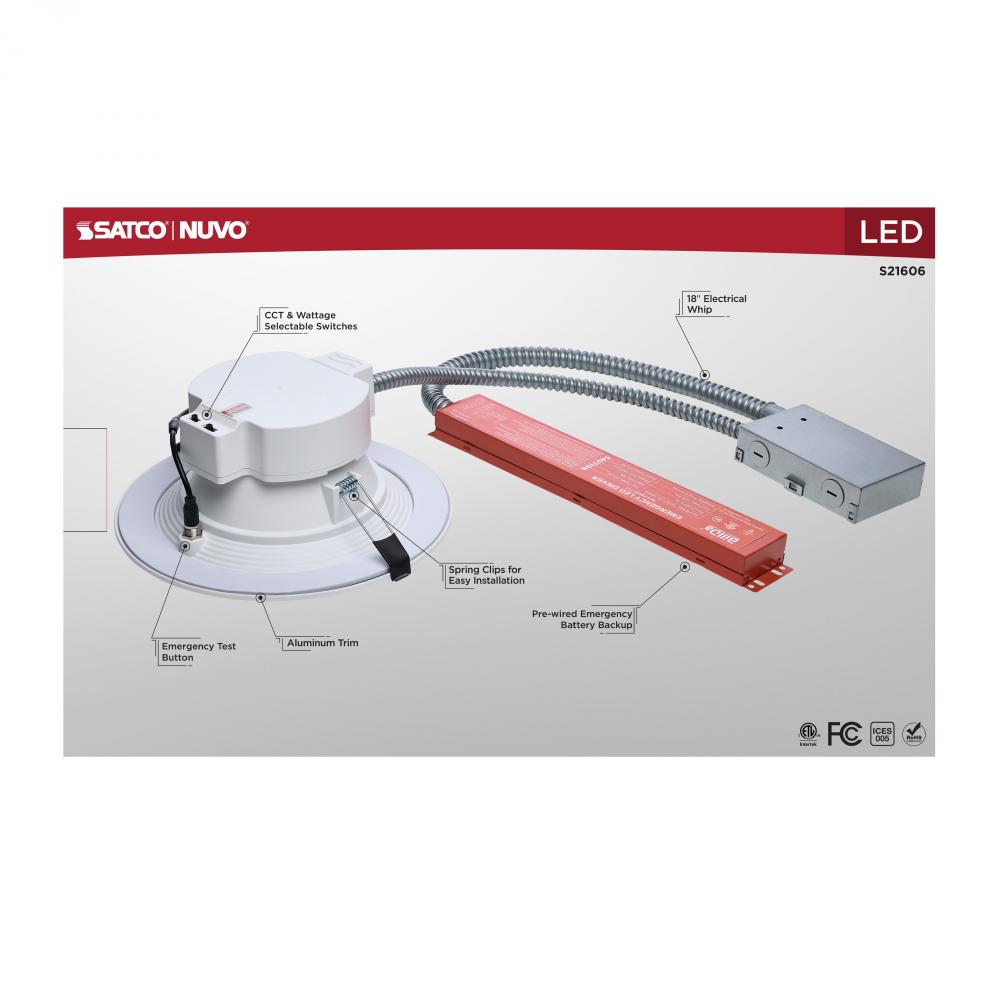

Feature 1:

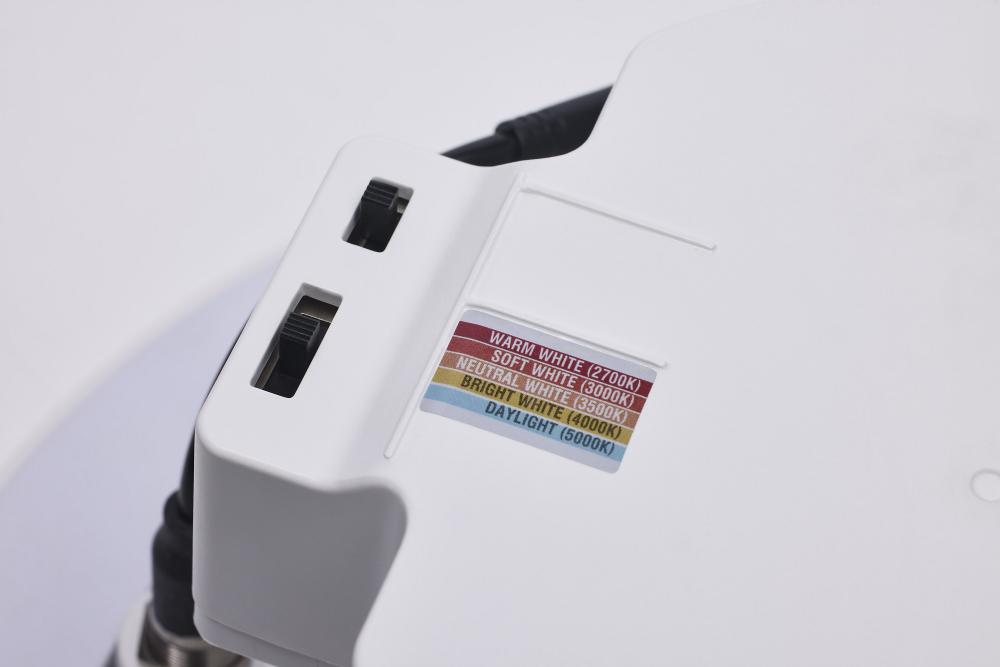

Field Selectable - 5 CCT and 3 Wattage
Feature 10:
5 Year Warranty
Feature 2:

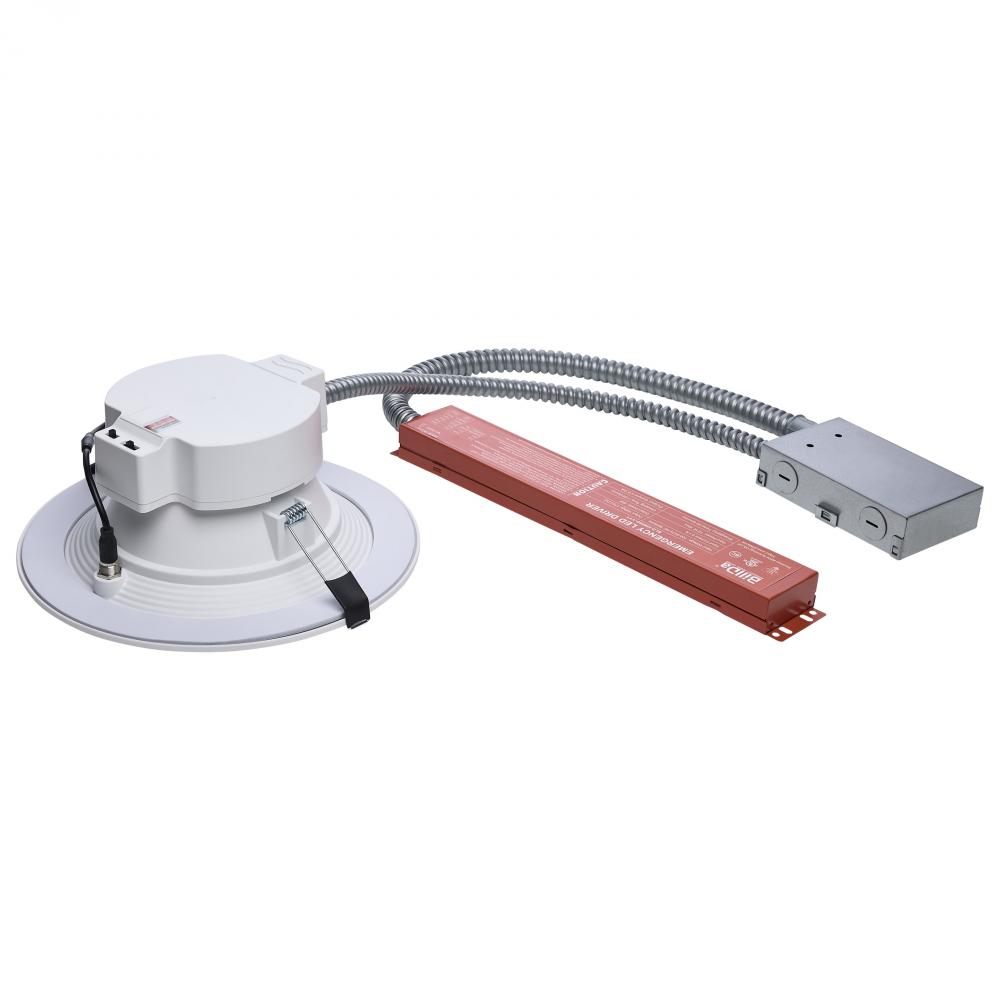

8-Inch Round, Emergency Battery Backup Model
Feature 3:
Dual Dimming
Feature 4:

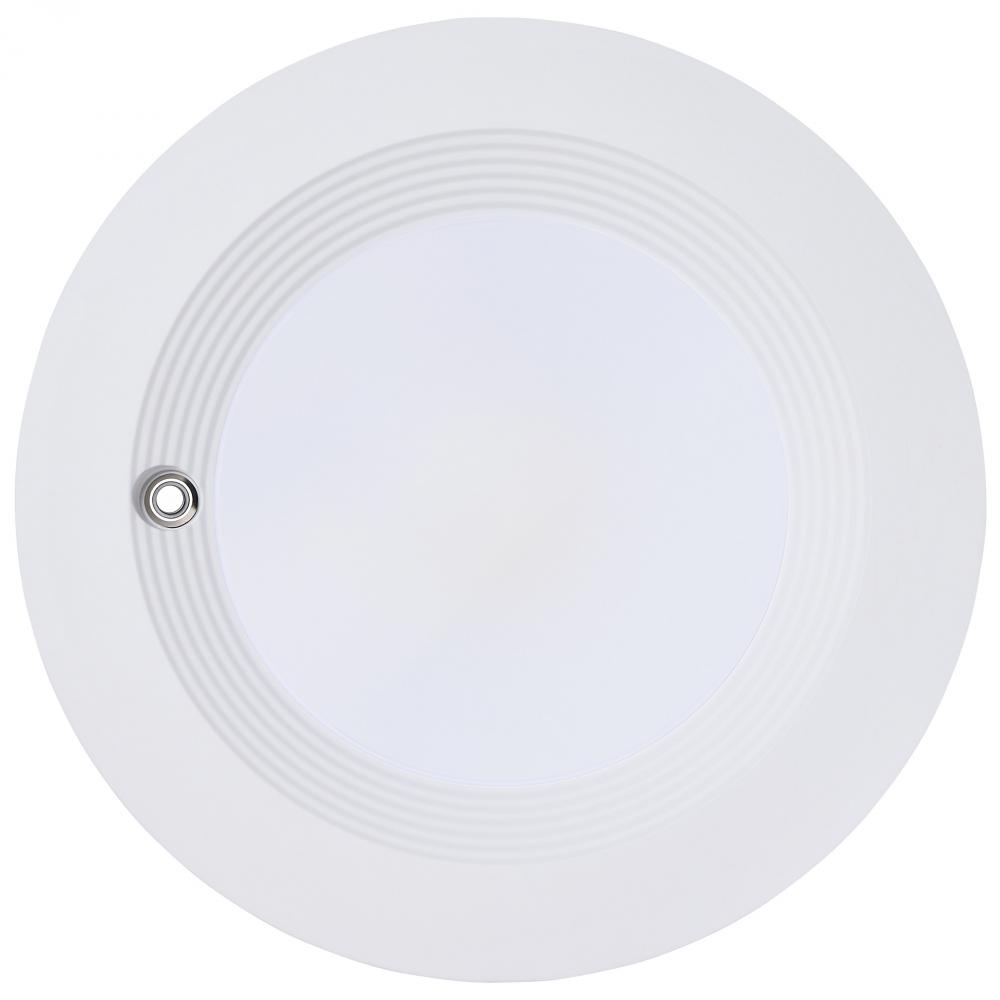

Regress Baffle Design for Reduced Glare
Feature 5:
18 Inch Electrical Whip
Feature 6:
EM Model includes self-diagnostic emergency feature
Feature 7:
90 CRI
Feature 8:
Damp location rated
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
Flr Equiv:
2 x 26W CFL
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
Yes
IC Rated:
Yes
Incandescent Equivalent:
125W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
Yes
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's Plus Series LED Commercial Downlight, S21606, with Emergency Battery Backup delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 8-inch round fixture features field-sele
Material:
Aluminum
Mounting Diameter:
7.99
Mounting Height:
3.8
Mounting Procedure:
Ceiling
NSF Approved:
No
Operating Frequency:
60Hz
Operating Temp:
+5C (+41F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Color Box
Photocell:
No
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's Plus Series LED Commercial Downlights deliver exceptional performance and versatility for today's remodel or new construction commercial environments. Offered in 4, 6, 8 and 10-inch round or square configurations, these downlights feat
Safety Listing:
cETLus - Listed
SDS class:
Lithium_Ion_Battery
Short Description:
28W/CDL/8/120-347/FS/RND/DD/E
Sloped Ceiling Compatible:
No
Specification Notes:
Default CCT setting is 3000K. Default wattage setting is 28W.
