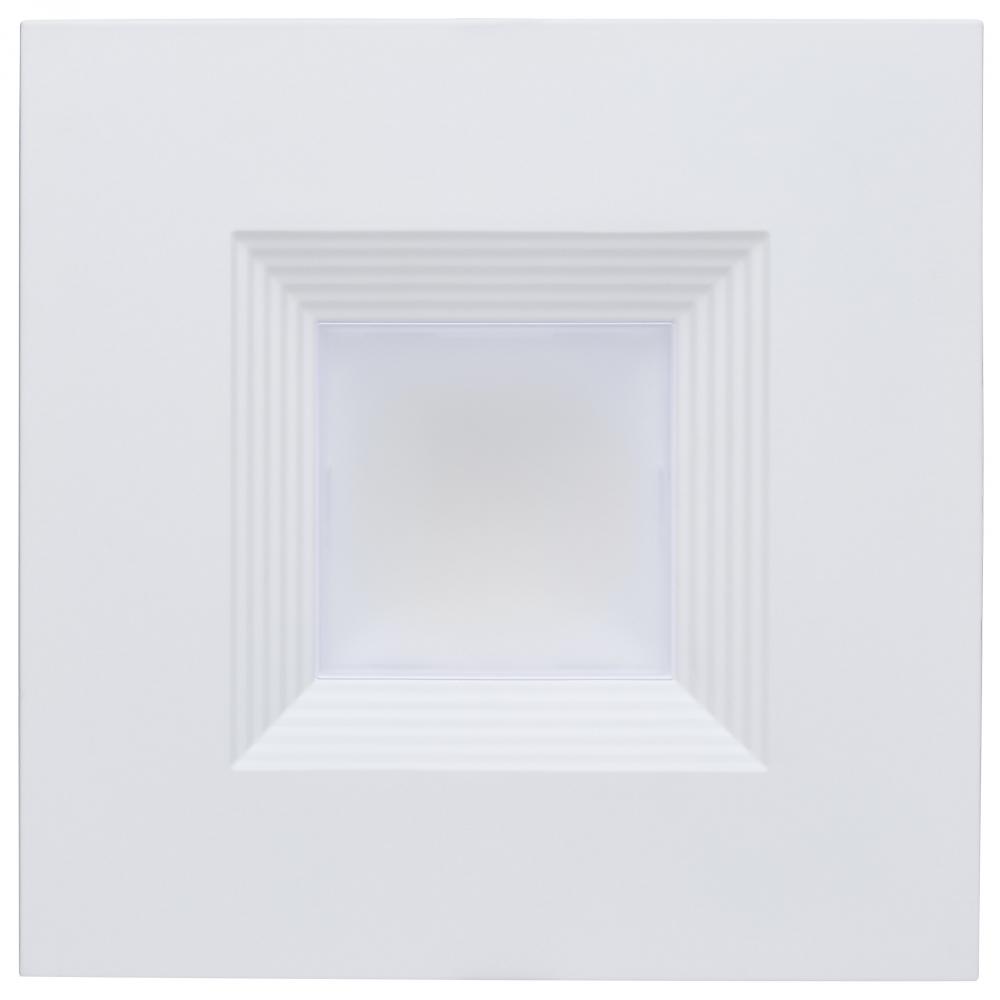

13.5W Field Selectable LED 4-Inch Commercial Downlight; Dual Dimming; Square; 120-347 Volt
$57.90
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer has 145 items available.

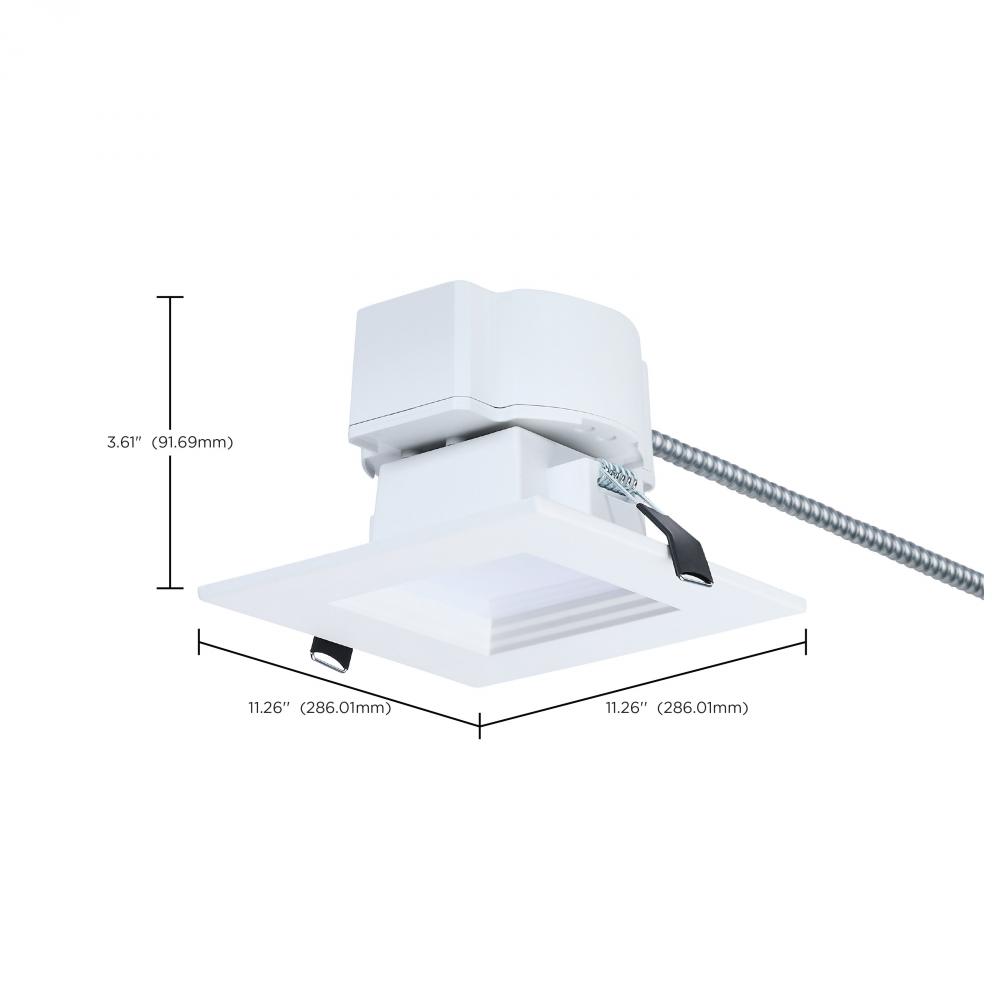

Dimensions
Height: 3.23"
Width: 4.92"
Product Overview

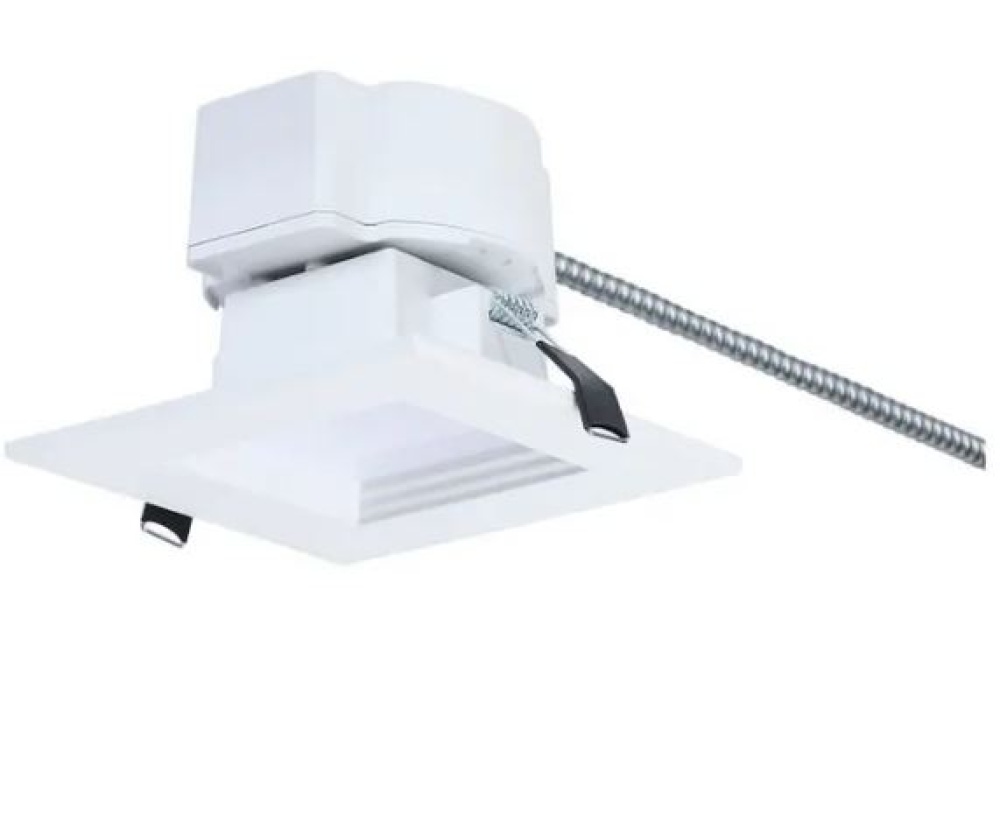

13.5W Field Selectable LED 4-Inch Commercial Downlight; Dual Dimming; Square; 120-347 Volt
Standard Information
Option:
Energy Star
LED
Prop 65
Refinement Options
Category:
Recessed
Sub Category:
Commercial
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
7.09
Each Length:
5.51
Each Width:
4.33
Length:
4.92
Lumens:
1200L/1000L/800L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.113-0.039/0.100-0.035/0.089-0.031A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
85
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2025 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Closet Rated:
No
Connection:
Hardwire
Country Of Origin:
Thailand
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
Phase Cut at 120V/0-10V at 120-347V
Dimming Type:
Dual Dimming
Each Cube:
0.0979
Each Quantity:
1
Efficacy:
88.89 LPW
ES Category:
Downlight Recessed
ES Unique ID:
4481352
FCC Compliant:
Yes
Feature 1:

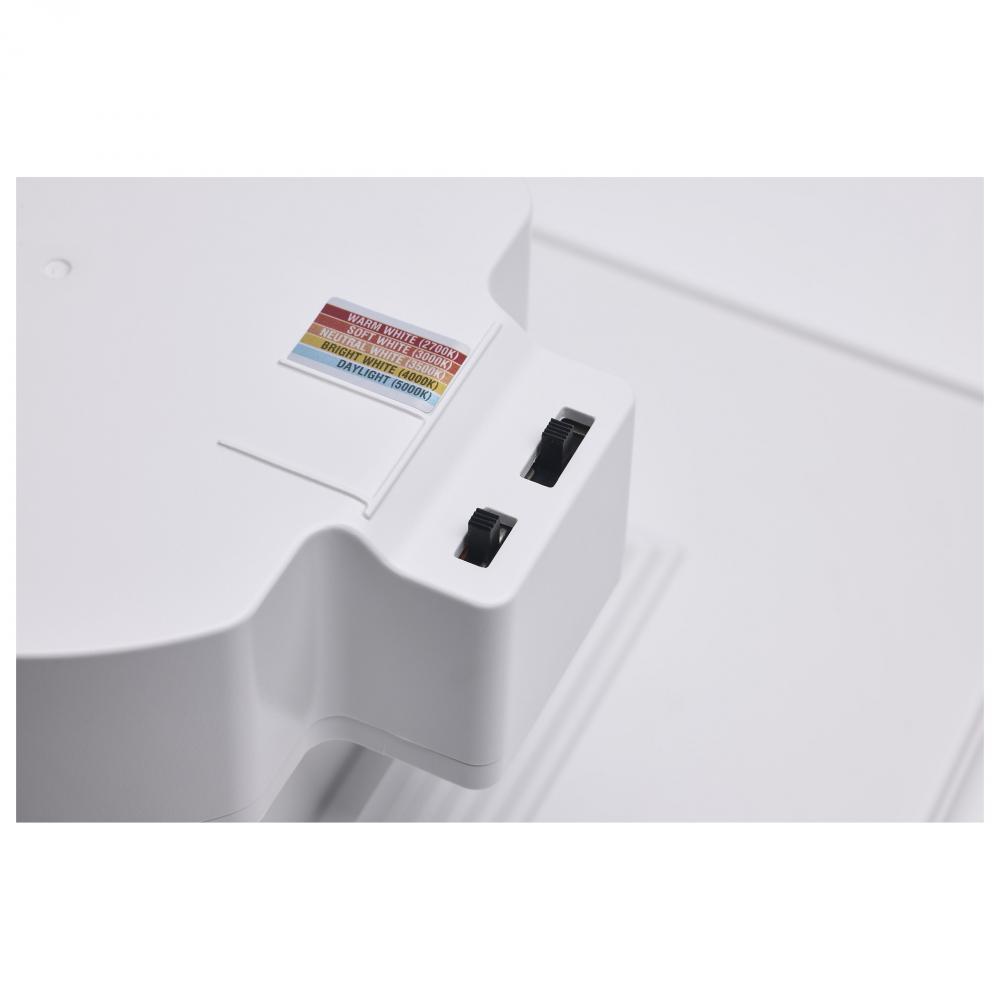

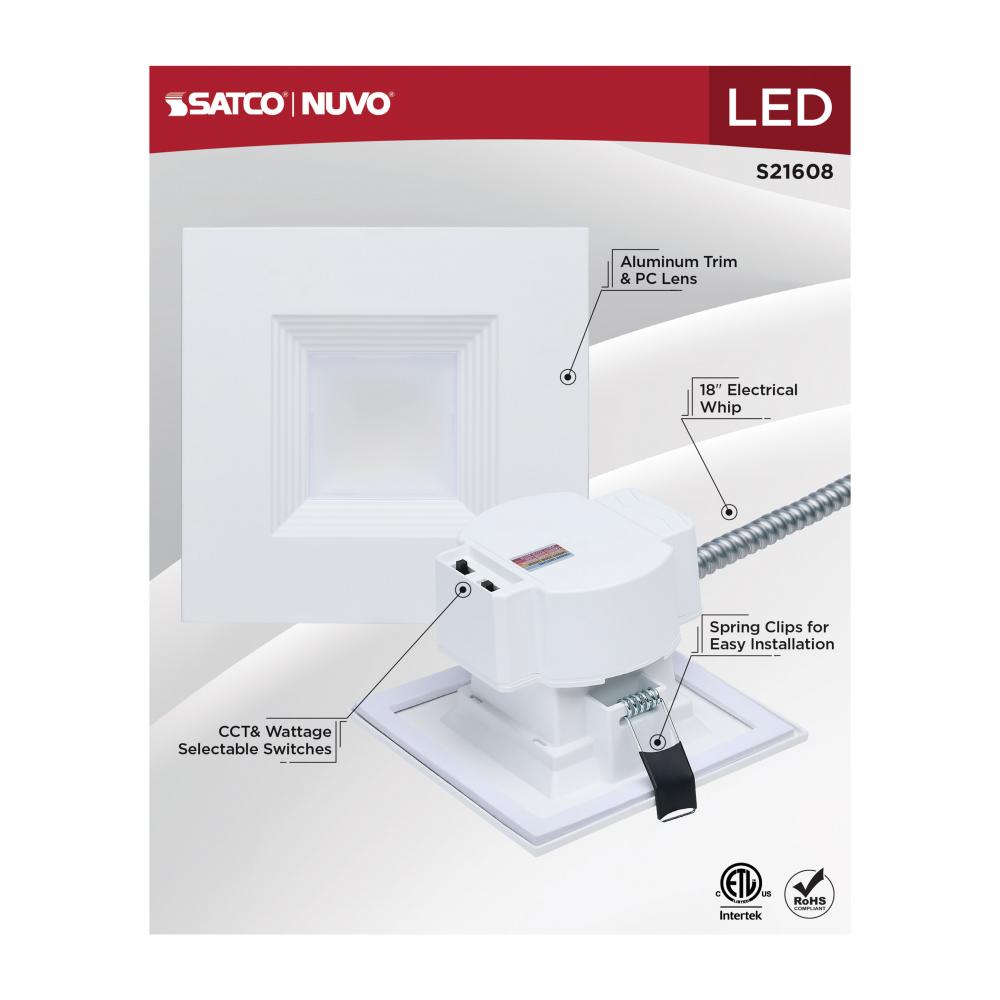

Field Selectable - 5 CCT and 3 Wattage
Feature 10:
5 Year Warranty
Feature 2:
4-Inch Square, Standard Model
Feature 3:
Dual Dimming
Feature 4:
Regress Baffle Design for Reduced Glare
Feature 5:

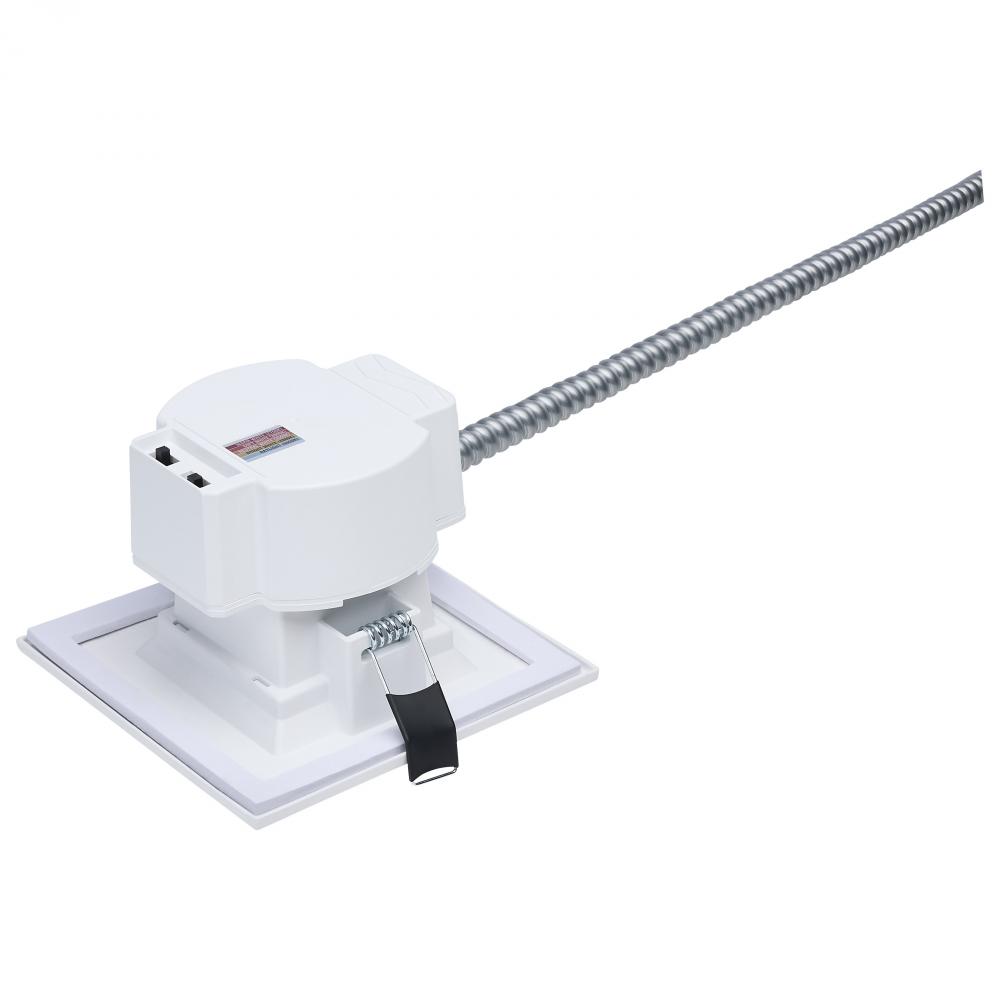

18 Inch Electrical Whip
Feature 6:
Integrated LED Driver
Feature 7:
90 CRI
Feature 8:
Damp location rated
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Square
Flr Equiv:
18W
Has Camera:
No
Has Driver:
Yes
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
Yes
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's Plus Series LED Commercial Downlight, S21608, delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 4-inch square fixture features field-selectable wattage and CCT settin
Material:
Aluminum
Mounting Height:
3.08
Mounting Length:
4.17
Mounting Procedure:
Ceiling
Mounting Width:
4.17
NSF Approved:
No
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Color Box
Photocell:
No
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's Plus Series LED Commercial Downlights deliver exceptional performance and versatility for today's remodel or new construction commercial environments. Offered in 4, 6, 8 and 10-inch round or square configurations, these downlights feat
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
13.5W/CDL/4/120-347/FS/SQ/DD
Sloped Ceiling Compatible:
No
Specification Notes:
Default CCT setting is 3000K. Default wattage setting is 13.5W.
